Zástrčka/skříň konektoru for BMW R45-R65LS..78-85 R65 (1985)

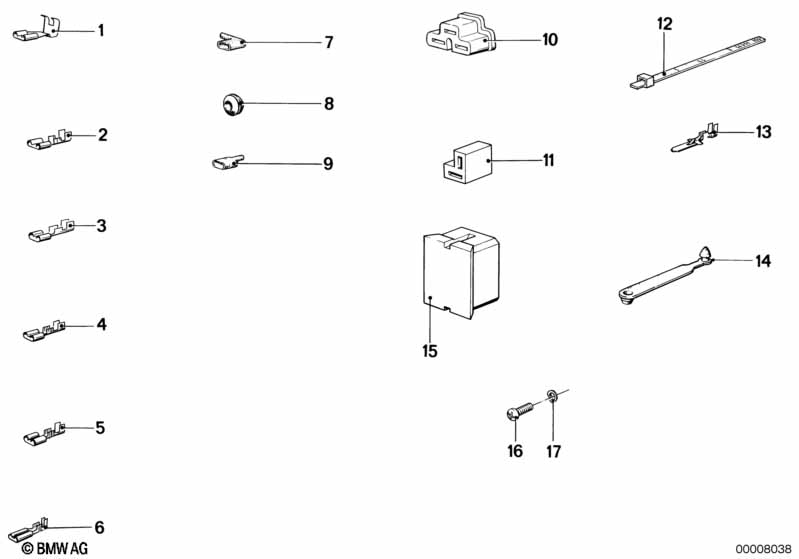

This Zástrčka/skříň konektoru technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Plochá dutinka | B=7,5/L=19,2MM | X | 61138061769 | $0.48 | UKONČENO | Shop at ECS Tuning | |||
| 02 | Plochá dutinka | B=7,5/L=19,2MM | X | 61138061769 | $0.48 | UKONČENO | Shop at ECS Tuning | |||
| 04 | Plochá dutinka | 1,0-2,5MM² | X | 61131352810 | $1.24 | UKONČENO | Shop at ECS Tuning | |||
| 05 | Plochá dutinka | B=11/L=26,9 | X | 61138061785 | $0.80 | Shop at ECS Tuning | ||||
| 06 | Plochá dutinka | B=3,7MM/L=14MM | X | 61131357090 | $0.68 | UKONČENO | Shop at ECS Tuning | |||
| 07 | Krycí víčko plochý konektor | X | 61138061761 | $0.40 | Shop at ECS Tuning | |||||
| 08 | Pryžová průchodka | X | 63121357501 | $0.87 | Shop at ECS Tuning | |||||
| 09 | Průchodka | X | 61138070188 | $0.42 | Shop at ECS Tuning | |||||
| 09 | Průchodka | X | 61138070220 | $0.42 | UKONČENO | Shop at ECS Tuning | ||||
| 10 | Pouzdro | X | 12328608018 | $3.00 | +core | Shop at ECS Tuning | ||||
| 11 | Skříň konektoru | 2-POLIG | X | 61131357903 | $0.84 | UKONČENO | Shop at ECS Tuning | |||
| 12 | Kabelová spojka | L=200MM/B=3,6MM | X | 61131367599 | $0.43 | Shop at ECS Tuning | ||||
| 12 | Kabelová spojka | L=292MM/B=4,8MM | X | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
| 13 | Plochá zástrčka | X | 61138061782 | $0.63 | UKONČENO | Shop at ECS Tuning | ||||
| 14 | Kabelová smyčka | 110MM | X | 61131356776 | $0.42 | UKONČENO | Shop at ECS Tuning | |||
| 15 | Víko | 2 | 61131243678 | $0.61 | Shop at ECS Tuning | |||||
| 16 | Šroub s čočkovitou hlavou | M5X12-ZN | 2 | 07119906431 | $0.58 | Shop at ECS Tuning | ||||
| 17 | Pružná podložka | B5 | 2 | 07119932098 | $0.38 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
