Pojistková skříň for BMW R45-R65LS..78-85 R65 (1985)

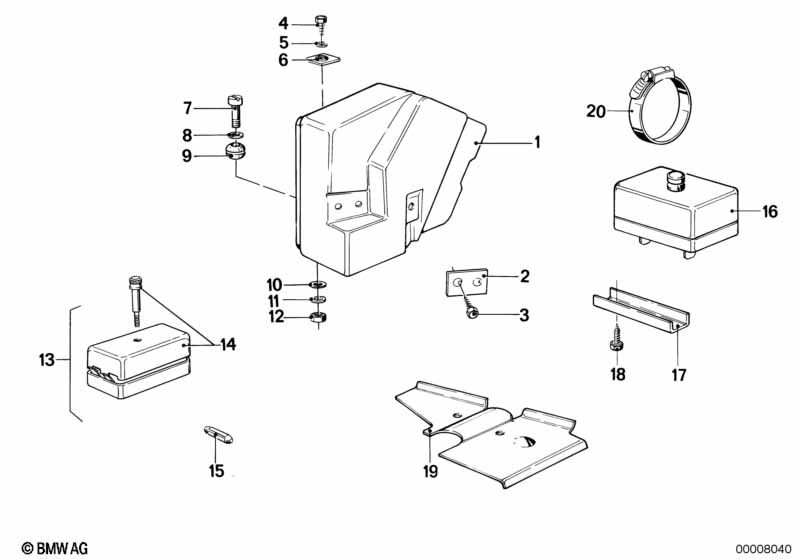

This Pojistková skříň technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 04 | Samořezný šroub s čočkovou hlavou | ST4,2X13 | 1 | 07119907946 | $0.20 | Shop at ECS Tuning | ||||
| 15 | Pojistka | 8A | 2 | 61138760138 | $1.83 | Shop at ECS Tuning | ||||
| 16 | Pojistková skříň | 1 | 09/1980 | 61131244038 | $60.54 | UKONČENO, +core | Shop at ECS Tuning | |||
| 17 | Uchycení | 1 | 09/1980 | 61131244132 | $2.65 | Shop at ECS Tuning | ||||
| 17 | Uchycení | 1 | 09/1980 | 61131244301 | $2.09 | Shop at ECS Tuning | ||||
| 18 | Šroub | 1 | 09/1980 | 07119904170 | $0.17 | Shop at ECS Tuning | ||||
| 19 | Kryt | 1 | 09/1980 | 61131244225 | $2.17 | Shop at ECS Tuning | ||||
| 20 | hadicová spona | L42-48 | 1 | 09/1980 | 07129952119 | $1.15 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
