Akumulátor for BMW R45-R65LS..78-85 R65LS (1983)

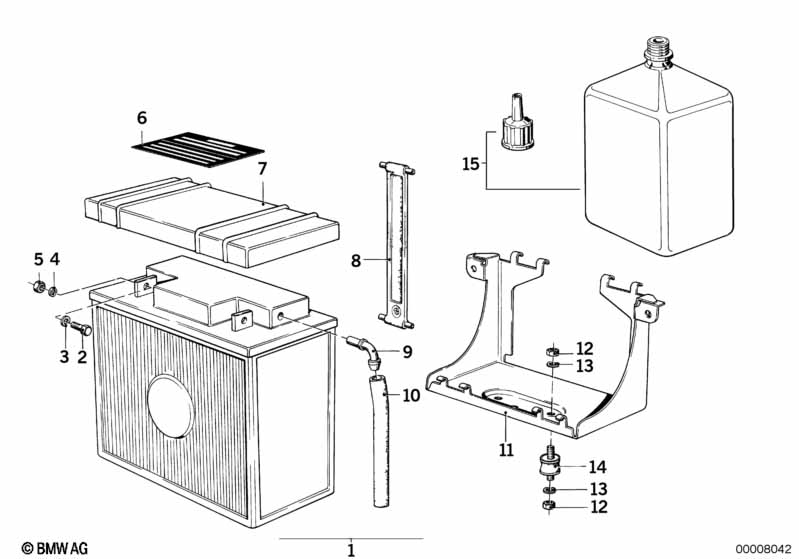

This Akumulátor technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65LS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1983.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Akumulátor bezúdržbový | 12V 19AH | 1 | 61212346800 | $175.89 | +core | Shop at ECS Tuning | |||
| 02 | Šestihranný šroub | M6X20 | 2 | 61211459655 | $1.93 | UKONČENO | Shop at ECS Tuning | |||
| 03 | Podložka | A6,4 | 2 | 61211459657 | $0.84 | UKONČENO | Shop at ECS Tuning | |||
| 04 | Pružný kroužek | B6 | 2 | 61217670327 | $0.55 | Shop at ECS Tuning | ||||
| 05 | Šestihranná matice | M6 | 2 | 61211459656 | $1.98 | UKONČENO | Shop at ECS Tuning | |||
| 06 | Informační štítek „akumulátor“ | 1 | 51141873247 | $8.03 | UKONČENO | Shop at ECS Tuning | ||||
| 07 | Víčko | 1 | 61211350723 | $8.37 | Shop at ECS Tuning | |||||
| 08 | Upínací pás | 2 | 61211243562 | $13.85 | Shop at ECS Tuning | |||||
| 09 | Hadicová přípojka | 1 | 02/1987 | 61211459247 | $1.45 | Shop at ECS Tuning | ||||
| 11 | Držák akumulátoru | 1 | 61211243302 | $38.42 | Shop at ECS Tuning | |||||
| 12 | Šestihranná matice | M6-8-ZNNIV SI | 8 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 13 | Pružná podložka černá | B6-ZN | 8 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 13 | Podložka | 5.3-140 HV-ZNS | 8 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 13 | Pružná podložka | B6-ZNS3 | 8 | 07119904496 | $1.78 | UKONČENO | Shop at ECS Tuning | |||
| 14 | Pryžové ložisko | 4 | 61211233028 | $13.76 | Shop at ECS Tuning |
Notes
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
- Ukončeno = Díl se již nevyrábí.
