Houkačka/relé/div. spínač for BMW R45-R65LS..78-85 R65 (1985)

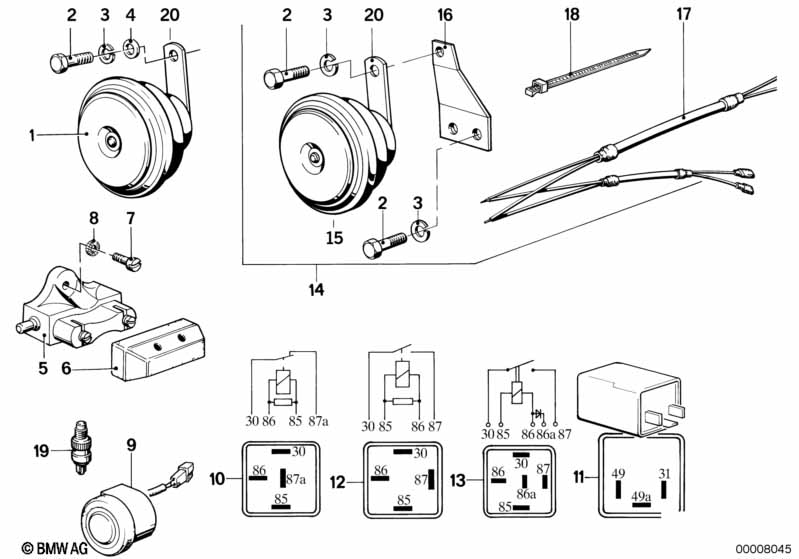

This Houkačka/relé/div. spínač technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Siréna | 1 | 61331243486 | $60.79 | UKONČENO, +core | Shop at ECS Tuning | ||||
| 02 | Šestihranný šroub | M8X16-8.8-ZNS3 | 3 | 07119902900 | $0.36 | Shop at ECS Tuning | ||||
| 03 | Pružná podložka | 8,4X15-ZNS3 | 3 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 04 | Podložka | 8,4X18X2MM | 1 | 07149180923 | Shop at ECS Tuning | |||||
| 05 | Spínač brzdových světel | 1 | 61311353684 | $58.32 | +core | Shop at ECS Tuning | ||||
| 06 | Víčko | 1 | 61311351249 | $8.61 | Shop at ECS Tuning | |||||
| 07 | Samořezný šroub s čočkovou hlavou | ST3,9X16 | 2 | 09/1982 | 07119906734 | $0.11 | Shop at ECS Tuning | |||
| Pro blikač | ||||||||||
| 11 | Přerušovač výstražných blikačů | 1 | 61311244392 | $40.98 | +core | Shop at ECS Tuning | ||||
| Pro denní světlomet | ||||||||||
| 12 | Relé | GELB | 1 | 61311373585 | $23.75 | UKONČENO | Shop at ECS Tuning | |||
| 12 | Minirelé | 1 | 61311373588 | $11.38 | Shop at ECS Tuning | |||||
| pro startér | ||||||||||
| 13 | Relé zinkgelb | 1 | 61361389105 | $23.75 | +core | Shop at ECS Tuning | ||||
| 14 | Dodat. sada klakson s dvojitým signálem | 1 | 61331243889 | UKONČENO, +core | Shop at ECS Tuning | |||||
| 15 | Siréna | 420HZ | 1 | 61331243710 | $60.79 | +core | Shop at ECS Tuning | |||
| 16 | Uchycení | 1 | 61331243743 | $23.70 | Shop at ECS Tuning | |||||
| 17 | Kabelová sada dvojitý klakson | 1 | 61121243752 | $48.15 | UKONČENO, +core | Shop at ECS Tuning | ||||
| 18 | Kabelová spojka | L=200MM/B=3,6MM | 1 | 61131367599 | $0.43 | Shop at ECS Tuning | ||||
| 19 | Spínač brzdových světel | 1 | 61311244070 | $13.70 | +core | Shop at ECS Tuning | ||||
| 20 | Příložka | 1 | 61332306792 | $4.35 | Shop at ECS Tuning | |||||
Notes
- Ukončeno = Díl se již nevyrábí.
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
