Různé dodatečné kabelové sady for BMW 7 Series E23 735i (1982)

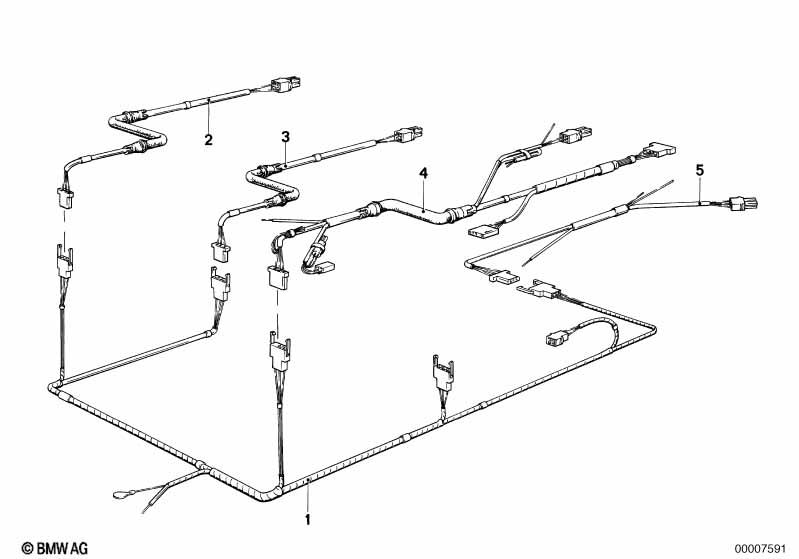

This Různé dodatečné kabelové sady technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Pro vozidla s Centrální zamykání |
=Ano |
|||||||||
| 02 | Kabelová sada strana spolujezdce | 1 | 09/1982 | 09/1984 | 61121375227 | $135.04 | UKONČENO | Shop at ECS Tuning | ||
| 03 | Kabelová sada zadní | 2 | 09/1982 | 09/1984 | 61121372862 | $55.52 | UKONČENO | Shop at ECS Tuning | ||
| 04 | Kabelová sada strana řidiče | 1 | 09/1982 | 09/1984 | 61121372864 | $117.18 | UKONČENO | Shop at ECS Tuning | ||
| 05 | Kabel světlo zavazadlového prostoru | 1 | 09/1982 | 09/1984 | 61121372153 | $30.97 | UKONČENO | Shop at ECS Tuning | ||
Notes
- Ukončeno = Díl se již nevyrábí.
