Kabelová sada ABS for BMW 5 Series E28 520i (1988)

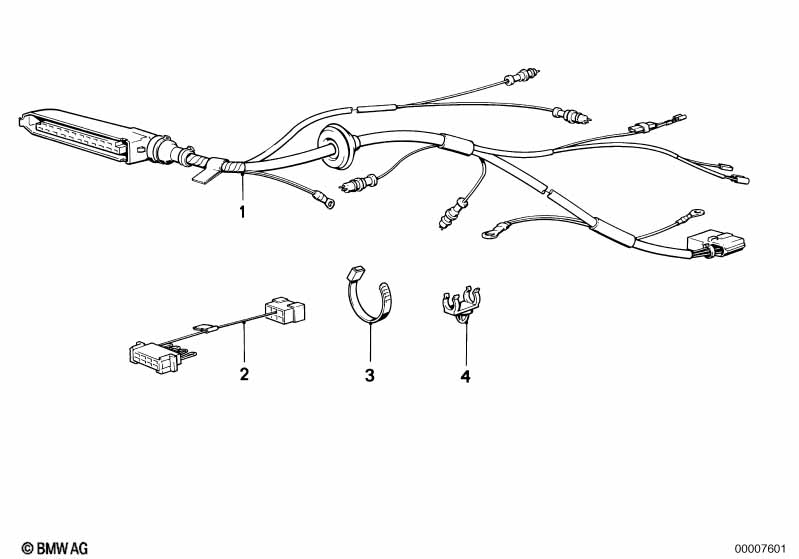

This Kabelová sada ABS technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Pro vozidla s Protiblokovací systém (ABS) |
=Ano |
|||||||||
| 03 | Kabelová spojka | L=292MM/B=4,8MM | 1 | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
| 04 | Uchycení | D = 13MM | 3 | 61131371074 | $2.52 | UKONČENO | Shop at ECS Tuning | |||
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 520i Kabelová sada ABS?
- This technical diagram illustrates the Kabelová sada ABS within the Vozidlo elektrika group for the 5 Series E28 520i produced during 1988. It provides a detailed exploded view of the components, identifying key parts such as the Kabelová spojka (Part #61131377134).
- Which models use the hardware listed in this Kabelová sada ABS?
- The hardware and components featured in the Kabelová sada ABS are specific to the 5 Series E28 520i produced during 1988. These technical specifications ensure that parts like the Kabelová spojka (61131377134) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Kabelová sada ABS assembly?
- Each item in the Kabelová sada ABS corresponds to the numbered list below the illustration. For the 5 Series E28 520i, you can identify the Kabelová spojka by locating its position on the schematic, which then links to the official BMW part number 61131377134 for the Vozidlo elektrika section.
