Kabelové sady for BMW 7 Series E23 735i (1986)

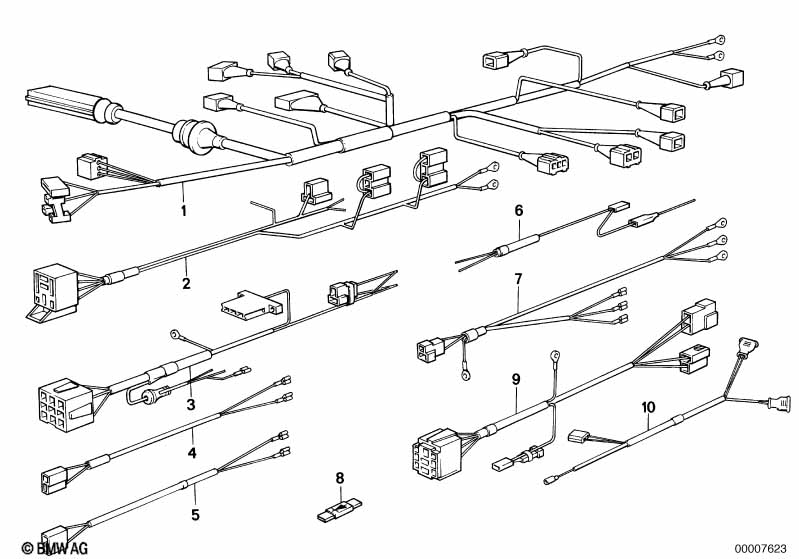

This Kabelové sady technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 04 | Kabelová sada světlo pro čtení | 2 | 61121363476 | $10.94 | UKONČENO | Shop at ECS Tuning | ||||
| 06 | Kabelová sada klimatizace | 1 | 09/1985 | 61121380245 | $28.74 | UKONČENO | Shop at ECS Tuning | |||
| 07 | Kabelová sada vnitřní osvětlení střední | 1 | 61121364087 | $21.99 | UKONČENO | Shop at ECS Tuning | ||||
| 08 | Dioda | 1 | 61311358265 | Shop at ECS Tuning | ||||||
| 09 | Kabelová sada magnetická spojka | 1 | 09/1984 | 61121375906 | $30.97 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 735i Kabelové sady?
- This technical diagram illustrates the Kabelové sady within the Vozidlo elektrika group for the 7 Series E23 735i produced during 1986. It provides a detailed exploded view of the components, identifying key parts such as the Kabelová sada světlo pro čtení (Part #61121363476).
- Which models use the hardware listed in this Kabelové sady?
- The hardware and components featured in the Kabelové sady are specific to the 7 Series E23 735i produced during 1986. These technical specifications ensure that parts like the Kabelová sada světlo pro čtení (61121363476) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Kabelové sady assembly?
- Each item in the Kabelové sady corresponds to the numbered list below the illustration. For the 7 Series E23 735i, you can identify the Kabelová sada světlo pro čtení by locating its position on the schematic, which then links to the official BMW part number 61121363476 for the Vozidlo elektrika section.
