Různé dodatečné kabelové sady for BMW 3 Series E21 320i (1979)

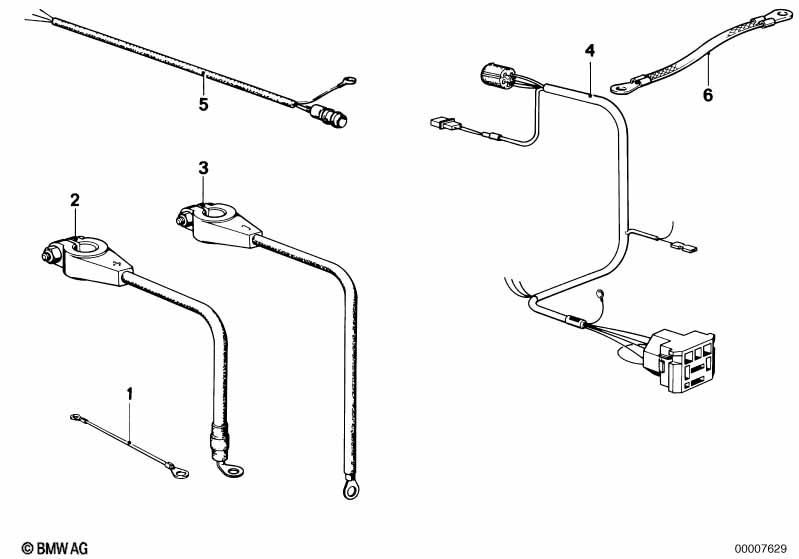

This Různé dodatečné kabelové sady technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Kostřicí kabel | L=170MM | 1 | 12521285011 | $15.59 | UKONČENO | Shop at ECS Tuning | |||
| 02 | Kabel akumulátoru plus | L=690MM / 16QMM | 1 | 12421732447 | $48.47 | Shop at ECS Tuning | ||||
| 02 | Kabel akumulátoru plus | 1 | 09/1977 | 09/1979 | 12421277510 | $11.92 | UKONČENO | Shop at ECS Tuning | ||
| 03 | Kabel akumulátoru minus | 1 | 09/1979 | 61121359032 | $25.20 | UKONČENO | Shop at ECS Tuning | |||
| 03 | Kabel akumulátoru minus | L=280 | 1 | 12421277586 | $43.67 | UKONČENO | Shop at ECS Tuning | |||
| 03 | Kabel akumulátoru minus | L=280MM | 1 | 12422296037 | $20.87 | UKONČENO | Shop at ECS Tuning | |||
| 03 | Kabel akumulátoru minus | L=260MM | 1 | 12421724408 | $28.24 | UKONČENO | Shop at ECS Tuning | |||
| 05 | Kab.sada indikace opotř. brzd. obložení | 1 | 61121367674 | $57.44 | UKONČENO | Shop at ECS Tuning | ||||
| 06 | Kostřicí kabel alternátor | 1 | 12511269675 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
