Kabelové sady for BMW 5 Series E28 520i (1987)

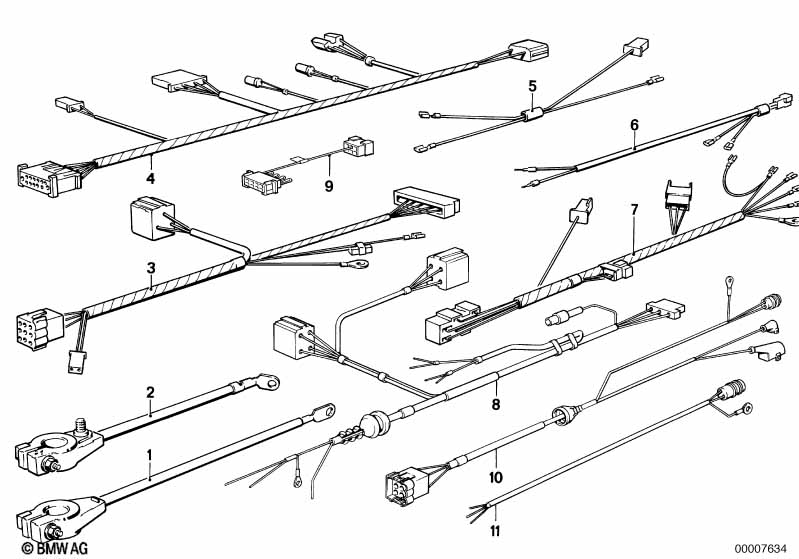

This Kabelové sady technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Pro vozidla s Provedení Japonsko |
L807A=Ano |
|||||||||
| 01 | Kabel akumulátoru minus | L=280 | 1 | 12421277586 | $43.67 | UKONČENO | Shop at ECS Tuning | |||
| 01 | Kabel akumulátoru minus | L=280MM | 1 | 12422296037 | $20.87 | UKONČENO | Shop at ECS Tuning | |||
| 01 | Kabel akumulátoru minus | L=260MM | 1 | 12421724408 | $28.24 | UKONČENO | Shop at ECS Tuning | |||
| 02 | Kabel akumulátoru plus | L=1000MM | 1 | 12421279650 | $23.51 | UKONČENO | Shop at ECS Tuning | |||
| 03 | Kabelová sada automatická převodovka | 1 | 61121380220 | $75.63 | UKONČENO | Shop at ECS Tuning | ||||
| Pro vozidla s Provedení Japonsko a Klimatizace |
L807A=Ano =Ano |
|||||||||
| 04 | Kabelová sada ovládání topení | 1 | 09/1986 | 61121381398 | $195.30 | UKONČENO | Shop at ECS Tuning | |||
| Pro vozidla s Provedení Japonsko |
L807A=Ano |
|||||||||
| 05 | Kabel světlo zavazadlového prostoru | 1 | 61121369359 | $6.70 | UKONČENO | Shop at ECS Tuning | ||||
| 06 | Kabelová sada vnitřní osvětlení střední | 1 | 61121364087 | $21.99 | UKONČENO | Shop at ECS Tuning | ||||
| 06 | Kabelová sada vnitřní osvětlení boční | 1 | 61121369296 | $18.97 | UKONČENO | Shop at ECS Tuning | ||||
| 07 | Kabelová sada el.posuvná a zved. střecha | 1 | 09/1986 | 61121381098 | $44.89 | UKONČENO | Shop at ECS Tuning | |||
| 08 | Kabelová sada pomocný ventilátor | 1 | 09/1984 | 61121380221 | $127.06 | UKONČENO | Shop at ECS Tuning | |||
| 10 | Kab.sada tacho.,pon.trubka,čerp.,oblož. | 1 | 09/1985 | 61121380218 | $127.06 | UKONČENO | Shop at ECS Tuning | |||
| 11 | Kab.sada indikace opotř. brzd. obložení | 1 | 61121367674 | $57.44 | UKONČENO | Shop at ECS Tuning | ||||
Notes
- Ukončeno = Díl se již nevyrábí.
