Skříň konektoru for BMW 3 Series E21 318i (1982)

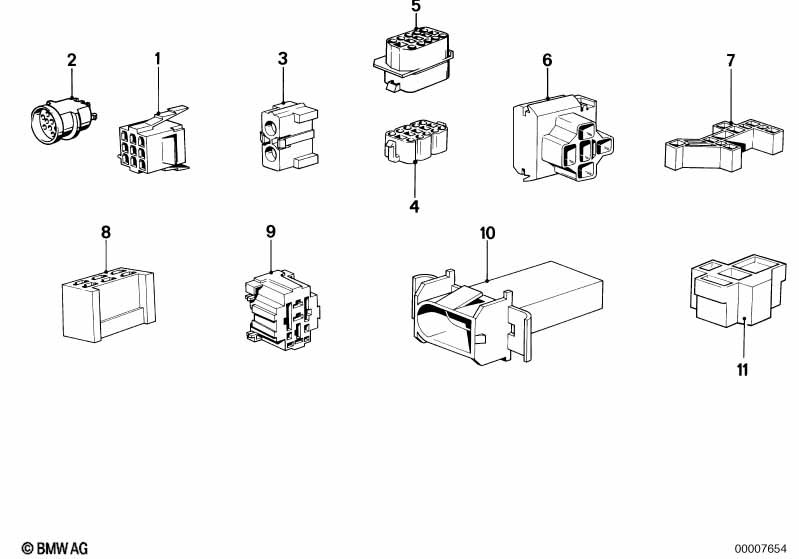

This Skříň konektoru technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Skříň konektoru diagnostika motoru | 1 | 09/1980 | 12521273100 | $1.87 | Shop at ECS Tuning | ||||
| 03 | Skříň konektoru ruční svítilna | 1 | 61131366929 | $3.82 | UKONČENO | Shop at ECS Tuning | ||||
| 04 | Skříň konektoru pojistková skříň | X | 61131359287 | $1.38 | UKONČENO | Shop at ECS Tuning | ||||
| 05 | Skříň konektoru pojistková skříň | X | 61131359286 | UKONČENO | Shop at ECS Tuning | |||||
| 06 | Skříň konektoru spouštěcí relé | X | 61131359470 | UKONČENO | Shop at ECS Tuning | |||||
| 07 | Skříň konektoru pojistk.skříň-světlomet | X | 61131358726 | $1.12 | UKONČENO | Shop at ECS Tuning | ||||
| 08 | Skříň konektoru zadní svítilna | X | 61131358725 | $1.38 | Shop at ECS Tuning | |||||
| 09 | Skříň konektoru | X | 61131358831 | $2.92 | Shop at ECS Tuning | |||||
| 10 | Skříň konektoru koncové mlhové světlo | X | 61131364478 | $1.12 | UKONČENO | Shop at ECS Tuning | ||||
| 11 | Skříň konektoru světlomet | 2 | 61131355349 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
