Pojistková skříň for BMW 5 Series E12 528 (1977)

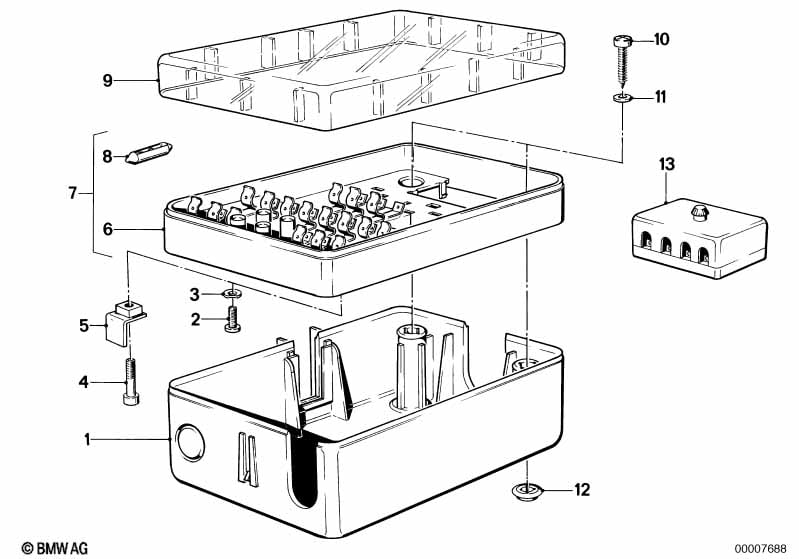

This Pojistková skříň technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Kabelové koryto | 1 | 61131354516 | $17.41 | Shop at ECS Tuning | |||||
| 02 | Šroub s čočkovitou hlavou | M5X10 | 2 | 07119907639 | $0.40 | Shop at ECS Tuning | ||||
| 03 | Pružná podložka | B5 | 2 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 06 | Pojistková skříň | 1 | 08/1976 | 61131362264 | $93.32 | Shop at ECS Tuning | ||||
| Pro vozidla s Provedení Itálie |
L814A=Ano |
|||||||||
| 06 | Pojistková skříň | 1 | 61131359930 | UKONČENO | Shop at ECS Tuning | |||||
| 07 | Pojistková skříň | 1 | 08/1976 | 61131362264 | $93.32 | Shop at ECS Tuning | ||||
| 08 | Pojistka | 8A | X | 61138760138 | $1.83 | Shop at ECS Tuning | ||||
| 08 | Pojistka | 25A | X | 61138760139 | $1.83 | UKONČENO | Shop at ECS Tuning | |||
| 08 | Pojistka | 16A | X | 61138760140 | $1.83 | Shop at ECS Tuning | ||||
| 08 | Pojistka | 5A | X | 61138760141 | $0.14 | Shop at ECS Tuning | ||||
| 09 | Víko | (DEUTSCH) | 1 | 08/1976 | 61131362265 | $23.58 | UKONČENO | Shop at ECS Tuning | ||
| Pro vozidla s Provedení Itálie |
L814A=Ano |
|||||||||
| 09 | Víko | 1 | 61131359883 | UKONČENO | Shop at ECS Tuning | |||||
| 10 | Samořezný šroub s čočkovou hlavou | ST5,5X55 | 3 | 07119906787 | $0.30 | Shop at ECS Tuning | ||||
| 11 | Podložka | A6,4-ZNNIV SI | 3 | 07119904202 | Shop at ECS Tuning | |||||
| 12 | Matice | 3 | 61131357285 | $0.33 | UKONČENO | Shop at ECS Tuning | ||||
Notes
- Ukončeno = Díl se již nevyrábí.
