Pojistková skříň for BMW 5 Series E28 520i (1988)

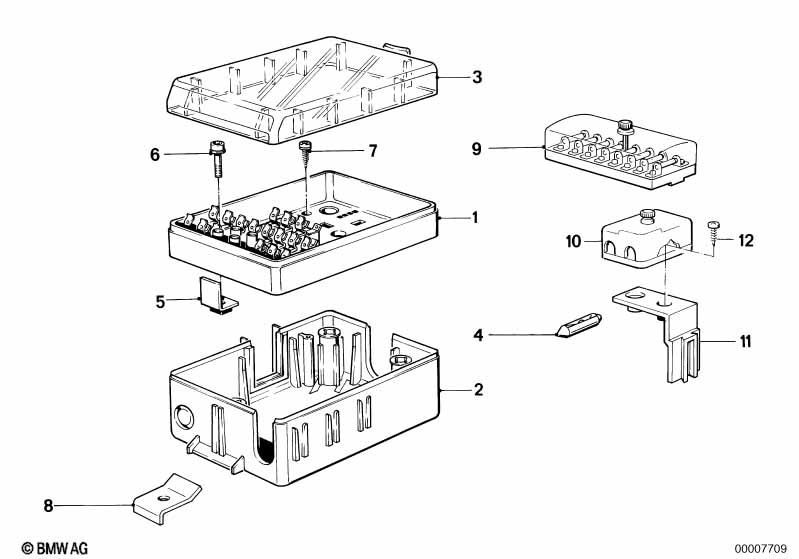

This Pojistková skříň technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pojistková skříň | 1 | 61131370426 | $96.32 | UKONČENO | Shop at ECS Tuning | ||||
| 02 | Kabelové koryto | 1 | 61131368305 | $62.83 | Shop at ECS Tuning | |||||
| 03 | Víko | (ENGLISH) | 1 | 61131366837 | $23.58 | Shop at ECS Tuning | ||||
| 04 | Pojistka | 8A | X | 61138760138 | $1.83 | Shop at ECS Tuning | ||||
| 04 | Pojistka | 25A | X | 61138760139 | $1.83 | UKONČENO | Shop at ECS Tuning | |||
| 04 | Pojistka | 16A | X | 61138760140 | $1.83 | Shop at ECS Tuning | ||||
| 05 | Uchycení | 1 | 61131366875 | $7.50 | Shop at ECS Tuning | |||||
| 06 | Šroub s válcovou hlavou | M5X30-Z1 | 1 | 07119918610 | UKONČENO | Shop at ECS Tuning | ||||
| 07 | Samořezný šroub s čočkovou hlavou | ST3,5X19 | 2 | 07119907905 | $0.09 | Shop at ECS Tuning | ||||
| 08 | Svorka | 2 | 61131367780 | $0.50 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 520i Pojistková skříň?
- This technical diagram illustrates the Pojistková skříň within the Vozidlo elektrika group for the 5 Series E28 520i produced during 1988. It provides a detailed exploded view of the components, identifying key parts such as the Pojistková skříň (Part #61131370426).
- Which models use the hardware listed in this Pojistková skříň?
- The hardware and components featured in the Pojistková skříň are specific to the 5 Series E28 520i produced during 1988. These technical specifications ensure that parts like the Pojistková skříň (61131370426) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Pojistková skříň assembly?
- Each item in the Pojistková skříň corresponds to the numbered list below the illustration. For the 5 Series E28 520i, you can identify the Pojistková skříň by locating its position on the schematic, which then links to the official BMW part number 61131370426 for the Vozidlo elektrika section.
