Siréna for BMW 3 Series E21 318i (1982)

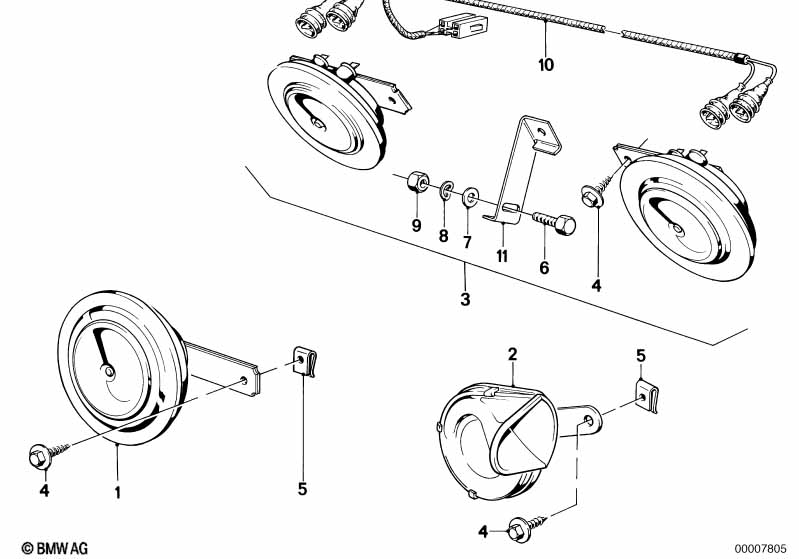

This Siréna technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Siréna | HELLA 335HZ | 1 | 61331367309 | $52.87 | UKONČENO | Shop at ECS Tuning | |||
| 01 | Siréna | HELLA 400HZ | 1 | 61331367310 | $40.16 | UKONČENO | Shop at ECS Tuning | |||
| 01 | Siréna | BOSCH 335HZ | 1 | 61331367312 | $54.69 | Shop at ECS Tuning | ||||
| 01 | Siréna | BOSCH 420HZ | 1 | 61331367356 | $40.96 | UKONČENO | Shop at ECS Tuning | |||
| 01 | Siréna | KLAXON 335HZ | 1 | 61331367358 | $42.14 | UKONČENO | Shop at ECS Tuning | |||
| 01 | Siréna | KLAXON 400HZ | 1 | 61331367359 | $42.94 | UKONČENO | Shop at ECS Tuning | |||
| 02 | Fanfára | KLAXON 420HZ | 1 | 61331369823 | UKONČENO | Shop at ECS Tuning | ||||
| 02 | Fanfára | KLAXON 520HZ | 1 | 61331369824 | UKONČENO | Shop at ECS Tuning | ||||
| 02 | Fanfára | FIAMM 410HZ | 1 | 61331371914 | $30.82 | +core | Shop at ECS Tuning | |||
| 02 | Fanfára | FIAMM 410HZ | 1 | 61337163972 | UKONČENO | Shop at ECS Tuning | ||||
| 02 | Fanfára | HELLA 400HZ | 1 | 61331372945 | $42.12 | UKONČENO | Shop at ECS Tuning | |||
| 02 | Fanfára | HELLA 500HZ | 1 | 61331376189 | $42.94 | Shop at ECS Tuning | ||||
| 02 | Fanfára | FIAMM 510HZ | 1 | 61337163975 | $48.37 | UKONČENO, +core | Shop at ECS Tuning | |||
| 04 | Šestihranný šroub na plech | ST6,3X22-C-Z2 | 2 | 07119916971 | $0.30 | Shop at ECS Tuning | ||||
| 04 | Šestihranný šroub na plech s podložkou | ST-6,3X22 | 2 | 07119901515 | $0.30 | Shop at ECS Tuning | ||||
| 05 | Matice na plech | ST6,3-10 | X | 07129901672 | $0.35 | Shop at ECS Tuning | ||||
| 10 | Kabelová sada klakson | 1 | 61121366872 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 318i Siréna?
- This technical diagram illustrates the Siréna within the Vozidlo elektrika group for the 3 Series E21 318i produced during 1982. It provides a detailed exploded view of the components, identifying key parts such as the Siréna (Part #61331367309).
- Which models use the hardware listed in this Siréna?
- The hardware and components featured in the Siréna are specific to the 3 Series E21 318i produced during 1982. These technical specifications ensure that parts like the Siréna (61331367309) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Siréna assembly?
- Each item in the Siréna corresponds to the numbered list below the illustration. For the 3 Series E21 318i, you can identify the Siréna by locating its position on the schematic, which then links to the official BMW part number 61331367309 for the Vozidlo elektrika section.
