Spínač for BMW 1502-2002tii 2002 (1971)

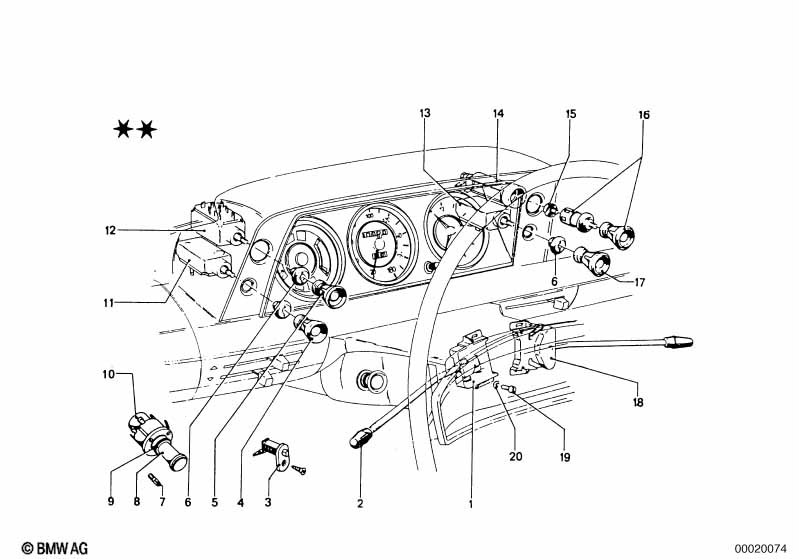

This Spínač technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Spínač tlumených světel | 1 | 61318648007 | $85.21 | Shop at ECS Tuning | |||||
| 02 | Knoflík | 1 | 61318648164 | $7.37 | UKONČENO | Shop at ECS Tuning | ||||
| 03 | Spínač | 2 | 03/1966 | 04/1972 | 61311362792 | $3.67 | Shop at ECS Tuning | |||
| 04 | Knoflík | 1 | 61318448116 | UKONČENO | Shop at ECS Tuning | |||||
| 04 | Knoflík | NEUTRAL | X | 61318648162 | UKONČENO | Shop at ECS Tuning | ||||
| 05 | Knoflík | 1 | 61318448117 | UKONČENO | Shop at ECS Tuning | |||||
| 06 | Rozeta | 3 | 64118362900 | $1.42 | UKONČENO | Shop at ECS Tuning | ||||
| 07 | Žárovka | 1,2W | 1 | 62149557328 | $2.68 | UKONČENO | Shop at ECS Tuning | |||
| 08 | Knoflík | 1 | 72609557326 | $7.37 | UKONČENO | Shop at ECS Tuning | ||||
| 09 | Rozeta | 1 | 61311350282 | UKONČENO | Shop at ECS Tuning | |||||
| 10 | Spínač výstražná světla | 1 | 61311350284 | UKONČENO | Shop at ECS Tuning | |||||
| 11 | Spínač ventilátor | 1 | 61318448107 | UKONČENO | Shop at ECS Tuning | |||||
| 12 | Spínač světlo | 1 | 61311351290 | $187.49 | UKONČENO | Shop at ECS Tuning | ||||
| Pro vozidla s Provedení Itálie |
L814A=Ano |
|||||||||
| 12 | Spínač světlo | 1 | 61311353053 | $26.42 | UKONČENO | Shop at ECS Tuning | ||||
| 13 | Spínač stěrač | 1 | 61311351197 | UKONČENO | Shop at ECS Tuning | |||||
| 14 | Zásuvka zapalovač | 1 | 61341351422 | UKONČENO | Shop at ECS Tuning | |||||
| 15 | Žhavicí spirála | 12 VOLT | 1 | 61348648111 | $5.27 | Shop at ECS Tuning | ||||
| 16 | Vložka zapalovače | 1 | 61341364532 | $18.67 | Shop at ECS Tuning | |||||
| 17 | Knoflík | 1 | 61318448115 | UKONČENO | Shop at ECS Tuning | |||||
| 18 | Přepínač směrových světel | 1 | 61318648072 | $239.81 | UKONČENO | Shop at ECS Tuning | ||||
| 19 | Šroub s čočkovitou hlavou | M5X8-Z3 | 4 | 07119906822 | $0.18 | Shop at ECS Tuning | ||||
| 20 | Pružná podložka | B5 | 4 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
Notes
- Ukončeno = Díl se již nevyrábí.
