Spínač for BMW 1502-2002tii 2002 (1970)

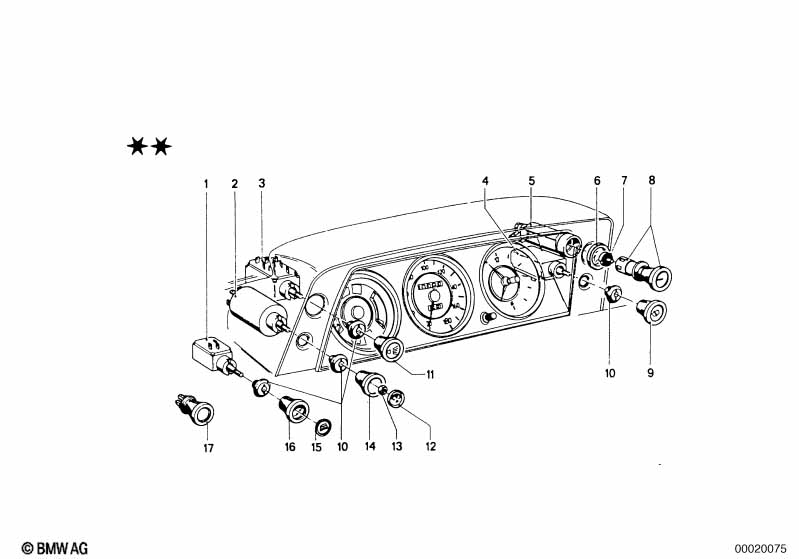

This Spínač technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1970.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Spínač světlo | 1 | 61311355791 | $145.50 | Shop at ECS Tuning | |||||
| 04 | Spínač stěrač | INTERVALL | 1 | 61311353870 | $109.65 | Shop at ECS Tuning | ||||
| 05 | Zásuvka zapalovač | 1 | 61341368728 | $48.94 | UKONČENO | Shop at ECS Tuning | ||||
| 06 | Rozeta | 1 | 61341353346 | UKONČENO | Shop at ECS Tuning | |||||
| 07 | Žhavicí spirála | 12 VOLT | 1 | 61348648111 | $5.27 | Shop at ECS Tuning | ||||
| 08 | Vložka zapalovače | 1 | 61341364532 | $18.67 | Shop at ECS Tuning | |||||
| 09 | Knoflík | 1 | 61311351057 | $14.55 | Shop at ECS Tuning | |||||
| 10 | Rozeta | 2 | 64118362900 | $1.42 | UKONČENO | Shop at ECS Tuning | ||||
| 11 | Knoflík | LICHT | 1 | 61311351048 | $16.77 | +core | Shop at ECS Tuning | |||
| 13 | Šestihranná matice | M5 | 1 | 07119905710 | $2.83 | Shop at ECS Tuning | ||||
| 14 | Knoflík | 1 | 61311353165 | UKONČENO | Shop at ECS Tuning | |||||
| 15 | Víčko | 1 | 61311356303 | UKONČENO | Shop at ECS Tuning | |||||
| 16 | Knoflík | 1 | 61311352645 | $10.84 | UKONČENO | Shop at ECS Tuning | ||||
| 17 | Slepý uzávěr | 1 | 61311356982 | $10.84 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
