Fanfára for BMW 1502-2002tii 2002tii (1973)

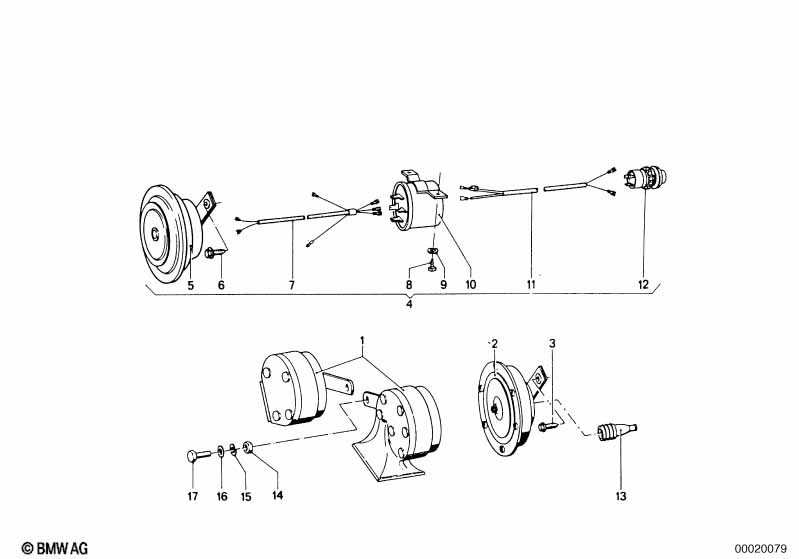

This Fanfára technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002tii. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fanfára | FIAMM 410HZ | 1 | 61337163982 | UKONČENO | Shop at ECS Tuning | ||||
| 01 | Fanfára | FIAMM 510HZ | 1 | 61337163983 | UKONČENO | Shop at ECS Tuning | ||||
| 02 | Siréna | HELLA 335HZ | 1 | 61331367309 | $52.87 | UKONČENO | Shop at ECS Tuning | |||
| 02 | Siréna | HELLA 400HZ | 1 | 61331367310 | $40.16 | UKONČENO | Shop at ECS Tuning | |||
| 02 | Siréna | BOSCH 335HZ | 1 | 61331367312 | $54.69 | Shop at ECS Tuning | ||||
| 02 | Siréna | BOSCH 420HZ | 1 | 61331367356 | $40.96 | UKONČENO | Shop at ECS Tuning | |||
| 05 | Siréna | CITY HORN USA | 1 | 09/1967 | 07/1976 | 61331358449 | UKONČENO | Shop at ECS Tuning | ||
| 10 | Relé | 1 | 09/1967 | 07/1976 | 61311353839 | UKONČENO | Shop at ECS Tuning | |||
| 12 | Spínač pro městský klakson | 1 | 09/1967 | 07/1976 | 61311358431 | UKONČENO | Shop at ECS Tuning | |||
| 13 | Ochranné víčko | 2 | 61131375697 | $1.72 | Shop at ECS Tuning | |||||
| 14 | Šestihranná matice | M8-8-ZNS3 | 2 | 07/1977 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 14 | Šestihranná matice | M8-8-ZNNIV SI | 2 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 15 | Pružný kroužek | B8 | 2 | 07119933096 | $0.18 | Shop at ECS Tuning | ||||
| 16 | Podložka | 8,4X16X1,6-ZNNV | 2 | 07119907030 | Shop at ECS Tuning | |||||
| 17 | Šestihranný šroub | M8X18-8.8-ZNS3 | 2 | 07119904146 | $0.65 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
