Uchycení akumulátoru a montážní díly for BMW 1500-2000CS 1800 (1971)

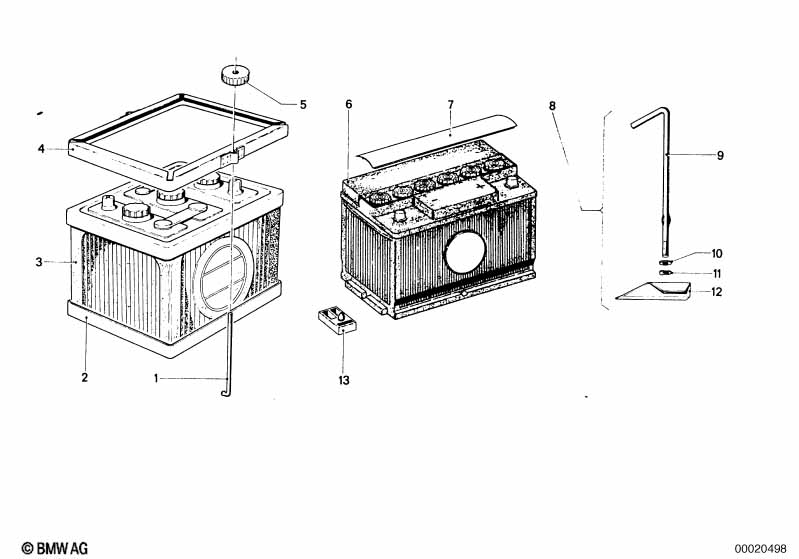

This Uchycení akumulátoru a montážní díly technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Akumulátor nenaplněný | 55AH | 1 | 61211362310 | UKONČENO | Shop at ECS Tuning | ||||
| 03 | Original BMW akumulátor nenaplněný | 46AH | 1 | 09/1965 | 01/1972 | 61218377123 | Shop at ECS Tuning | |||
| 04 | Rám | 1 | 61218642104 | UKONČENO | Shop at ECS Tuning | |||||
| 04 | Rám | 1 | 09/1965 | 01/1972 | 61218742100 | UKONČENO | Shop at ECS Tuning | |||
| 08 | Držák akumulátoru | 232MM | 1 | 09/1965 | 01/1972 | 61211353680 | $8.52 | Shop at ECS Tuning | ||
| 09 | Držák akumulátoru | 232MM | 1 | 09/1965 | 01/1972 | 61211353680 | $8.52 | Shop at ECS Tuning | ||
| 11 | Axiální pojistka | 15X5,7MM | 1 | 09/1965 | 01/1972 | 07149158226 | Shop at ECS Tuning | |||
| 12 | Napínací vedení | 1 | 09/1965 | 01/1972 | 61211350100 | UKONČENO | Shop at ECS Tuning | |||
| 13 | Distanční vložka | 1 | 09/1965 | 01/1972 | 61211350825 | $1.20 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1500-2000CS 1800 Uchycení akumulátoru a montážní díly?
- This technical diagram illustrates the Uchycení akumulátoru a montážní díly within the Vozidlo elektrika group for the 1500-2000CS 1800 produced during 1971. It provides a detailed exploded view of the components, identifying key parts such as the Akumulátor nenaplněný (Part #61211362310).
- Which models use the hardware listed in this Uchycení akumulátoru a montážní díly?
- The hardware and components featured in the Uchycení akumulátoru a montážní díly are specific to the 1500-2000CS 1800 produced during 1971. These technical specifications ensure that parts like the Akumulátor nenaplněný (61211362310) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Uchycení akumulátoru a montážní díly assembly?
- Each item in the Uchycení akumulátoru a montážní díly corresponds to the numbered list below the illustration. For the 1500-2000CS 1800, you can identify the Akumulátor nenaplněný by locating its position on the schematic, which then links to the official BMW part number 61211362310 for the Vozidlo elektrika section.
