Ostřikovač skla for BMW 1500-2000CS 1800 (1971)

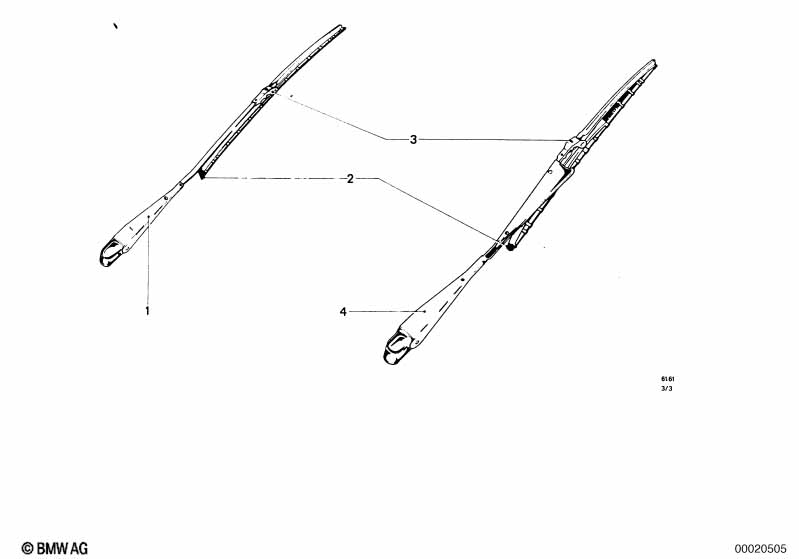

This Ostřikovač skla technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Raménko stěrače | CHROM | 1 | 02/1962 | 01/1972 | 61618644142 | UKONČENO | Shop at ECS Tuning | ||
| 02 | Stírátko | BOSCH 380 BLACK | X | 02/1962 | 01/1972 | 61611357254 | $22.79 | UKONČENO | Shop at ECS Tuning | |
| 02 | Gumičky stěračů | TRICO | X | 02/1962 | 01/1972 | 61611359201 | UKONČENO | Shop at ECS Tuning | ||
| 03 | Stírátko | BOSCH 380 BLACK | X | 61611357254 | $22.79 | UKONČENO | Shop at ECS Tuning | |||
| 03 | Sada lišty stěračů | 400 MM BLACK | X | 02/1962 | 01/1972 | 61611357272 | $26.12 | Shop at ECS Tuning | ||
| 04 | Raménko stěrače s vodicím plechem levé | CHROM | 1 | 02/1962 | 01/1972 | 61618644143 | $141.73 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
