Ostřikovač skla for BMW 1500-2000CS 1800 (1971)

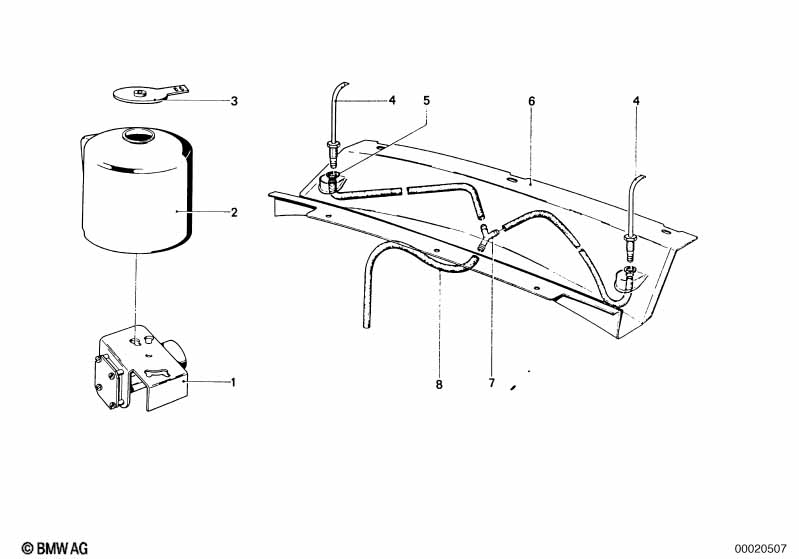

This Ostřikovač skla technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Čerpadlo ostřikovač skla | 1 | 61661350154 | UKONČENO | Shop at ECS Tuning | |||||
| 02 | Nádržka kapaliny | 1 | 61661350871 | $40.71 | Shop at ECS Tuning | |||||
| 03 | Víko | 1 | 61668645126 | UKONČENO | Shop at ECS Tuning | |||||
| 03 | Víko pro nádržku ostřikovače | 1 | 61661364807 | $5.90 | Shop at ECS Tuning | |||||
| 04 | Vstřikovací tryska | 2 | 61711350878 | UKONČENO | Shop at ECS Tuning | |||||
| 05 | Okno | 2 | 61668445111 | UKONČENO | Shop at ECS Tuning | |||||
| 06 | Krycí plech | 1 | 61711351029 | UKONČENO | Shop at ECS Tuning | |||||
| 07 | Rozdělovač | 1 | 61661350885 | $1.10 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1500-2000CS 1800 Ostřikovač skla?
- This technical diagram illustrates the Ostřikovač skla within the Vozidlo elektrika group for the 1500-2000CS 1800 produced during 1971. It provides a detailed exploded view of the components, identifying key parts such as the Čerpadlo ostřikovač skla (Part #61661350154).
- Which models use the hardware listed in this Ostřikovač skla?
- The hardware and components featured in the Ostřikovač skla are specific to the 1500-2000CS 1800 produced during 1971. These technical specifications ensure that parts like the Čerpadlo ostřikovač skla (61661350154) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Ostřikovač skla assembly?
- Each item in the Ostřikovač skla corresponds to the numbered list below the illustration. For the 1500-2000CS 1800, you can identify the Čerpadlo ostřikovač skla by locating its position on the schematic, which then links to the official BMW part number 61661350154 for the Vozidlo elektrika section.
