Kabelový svazek for BMW 2500-3.3Li 2800 (1975)

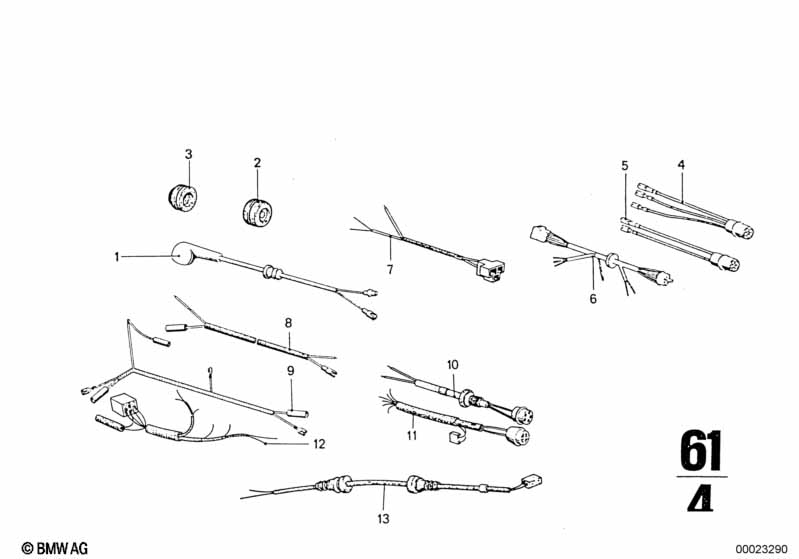

This Kabelový svazek technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Pryžová průchodka | 1 | 63128071754 | $1.13 | Shop at ECS Tuning | |||||
| 03 | Kabelová průchodka | 1 | 61131350914 | $1.15 | Shop at ECS Tuning | |||||
| 05 | Sada kabelů | 1 | 08/1968 | 02/1977 | 61121354029 | UKONČENO | Shop at ECS Tuning | |||
| 06 | Sada kabelů | 1 | 02/1969 | 02/1977 | 61121356898 | UKONČENO | Shop at ECS Tuning | |||
| 06 | Sada kabelů | 1 | 05/1971 | 02/1977 | 61121354304 | UKONČENO | Shop at ECS Tuning | |||
| 06 | Kabel | 1 | 09/1973 | 02/1977 | 61121361056 | UKONČENO | Shop at ECS Tuning | |||
| 09 | Kabel | 1 | 08/1968 | 02/1977 | 61121358001 | UKONČENO | Shop at ECS Tuning | |||
| 10 | Kabelová sada zpětný světlomet | 1 | 08/1968 | 02/1977 | 61121354363 | UKONČENO | Shop at ECS Tuning | |||
| 11 | Kabel | 1 | 09/1973 | 02/1977 | 61121359922 | UKONČENO | Shop at ECS Tuning | |||
| 13 | Kabel | 1 | 08/1968 | 02/1977 | 61121358741 | $13.06 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 2800 Kabelový svazek?
- This technical diagram illustrates the Kabelový svazek within the Vozidlo elektrika group for the 2500-3.3Li 2800 produced during 1975. It provides a detailed exploded view of the components, identifying key parts such as the Pryžová průchodka (Part #63128071754).
- Which models use the hardware listed in this Kabelový svazek?
- The hardware and components featured in the Kabelový svazek are specific to the 2500-3.3Li 2800 produced during 1975. These technical specifications ensure that parts like the Pryžová průchodka (63128071754) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Kabelový svazek assembly?
- Each item in the Kabelový svazek corresponds to the numbered list below the illustration. For the 2500-3.3Li 2800, you can identify the Pryžová průchodka by locating its position on the schematic, which then links to the official BMW part number 63128071754 for the Vozidlo elektrika section.
