Fanfára for BMW MINI R50 Cooper (2000)

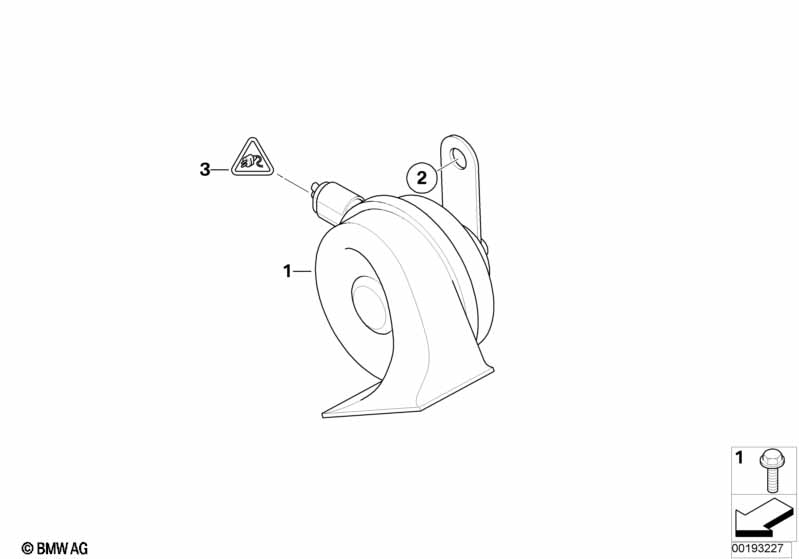

This Fanfára technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fanfára hlubokotónová | 1 | 61337193996 | $34.78 | +core | Shop at ECS Tuning | ||||
| 01 | Fanfára vysokotónová | 1 | 61337193997 | $34.78 | +core | Shop at ECS Tuning | ||||
| 02 | Šroub Torx | ISA M6X18 SW | 2 | 07146959923 | $0.55 | Shop at ECS Tuning | ||||
| 03 | univerzální zdířková skříň nekódovaná | 2 POL. | 1 | 07/2008 | 61138795954 | Shop at ECS Tuning | ||||
| pouze společně s | ||||||||||
| -- | Zdířkový kontakt MQS ELA s kabelem | 0,35-0,5 MM² AG | 2 | 07/2008 | 61130056961 | Shop at ECS Tuning | ||||
| -- | Zdířkový kontakt SLK 2,8 ELA | 0,22-0,35MM² AG | 2 | 07/2008 | 12521427612 | $0.50 | Shop at ECS Tuning | |||
| 03 | Opravná sada kryt pouzdra | 2 POL. | 1 | 61132359999 | Shop at ECS Tuning | |||||
| pouze společně s | ||||||||||
| -- | Zdířkový kontakt MQS ELA s kabelem | 0,35-0,5 MM² AG | 2 | 61130056961 | Shop at ECS Tuning | |||||
| -- | Zdířkový kontakt SLK 2,8 ELA | 0,22-0,35MM² AG | 2 | 12521427612 | $0.50 | SI 2 02 05(194) | Shop at ECS Tuning | |||
Notes
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
- SI = Service-Information (Servisní informace)
