Nádržka ostřikovač skla for BMW MINI R50 Cooper (2000)

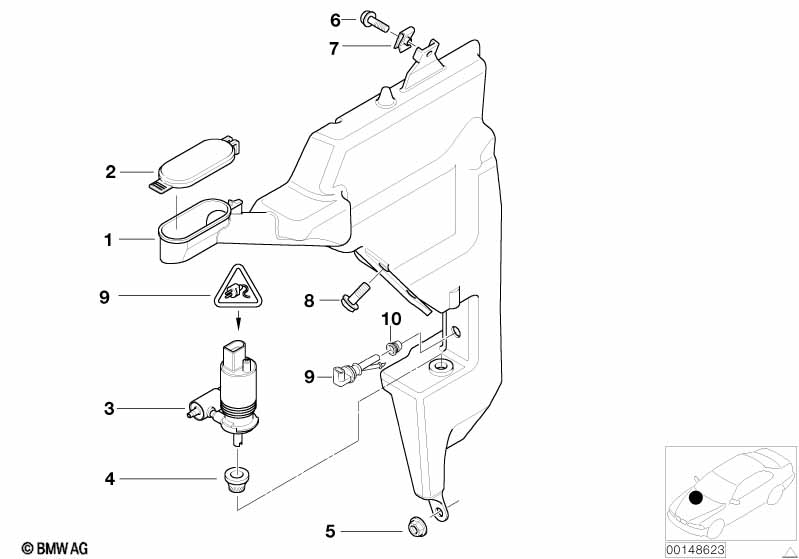

This Nádržka ostřikovač skla technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Nádržka ostřikovač skla | 2.4 L | 1 | 01/2005 | 61667158231 | $33.60 | Shop at ECS Tuning | |||
| pouze společně s | ||||||||||
| -- | Čerpadlo ostřikovač skla | 1 | 01/2005 | 67126963854 | $57.47 | Shop at ECS Tuning | ||||
| -- | Síto pro vodní čerpadlo | 1 | 01/2005 | 61667006063 | $2.62 | Shop at ECS Tuning | ||||
| 02 | Víko pro nádržku ostřikovače | 1 | 61667045424 | $2.65 | Shop at ECS Tuning | |||||
| 03 | Čerpadlo ostřikovač skla | 1 | 01/2005 | 67128377429 | $57.47 | Shop at ECS Tuning | ||||
| 04 | Síto pro vodní čerpadlo | 1 | 61667045422 | $1.17 | Shop at ECS Tuning | |||||
| vhodné jen pro nádobu ostřikovače 2,4 l | ||||||||||
| 04 | Síto pro vodní čerpadlo | 1 | 61667006063 | $2.62 | Shop at ECS Tuning | |||||
| 05 | Přírubová matice | M6 | 1 | 61670702680 | $0.72 | Shop at ECS Tuning | ||||
| 06 | Šestihranný šroub | M6X16 | 1 | 07119902029 | $0.55 | Shop at ECS Tuning | ||||
| 07 | C-Svorka matice | M6-ZNS3 | 1 | 51127070202 | $1.00 | Shop at ECS Tuning | ||||
| 08 | Šestihranný šroub | M6X16 | 1 | 07119902029 | $0.55 | Shop at ECS Tuning | ||||
