Jednotlivé díly ostřikovač skla for BMW MINI R50 Cooper (2000)

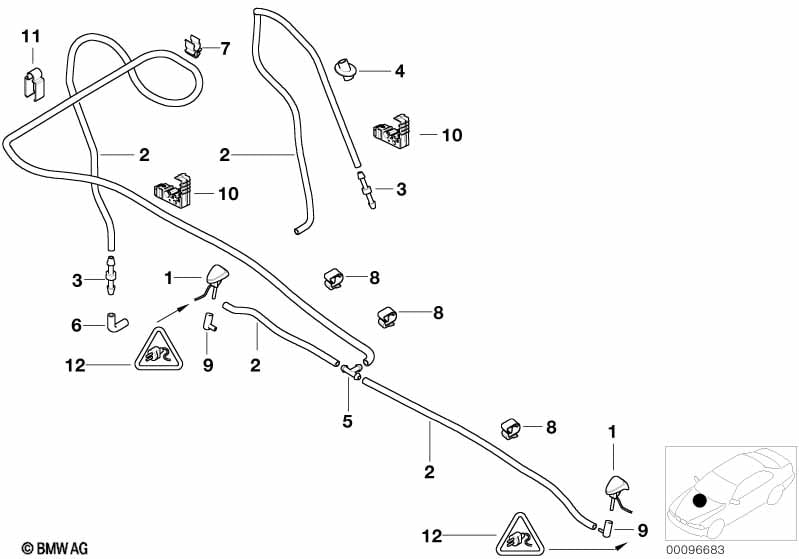

This Jednotlivé díly ostřikovač skla technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Vstřikovací tryska vyhřívaná | 2 | 05/2001 | 61667045429 | $37.35 | Shop at ECS Tuning | ||||
| 02 | Metrové zboží hadicové vedení | X | 61667045430 | $8.13 | Shop at ECS Tuning | |||||
| 03 | Propojovací kus | 2 | 61667045425 | $1.17 | Shop at ECS Tuning | |||||
| 04 | Průchodka hadicové vedení | 1 | 61667045426 | $1.77 | Shop at ECS Tuning | |||||
| 05 | Zpětný ventil | 1 | 61667045427 | $2.18 | Shop at ECS Tuning | |||||
| 06 | Úhelník | 1 | 61667045421 | $1.77 | Shop at ECS Tuning | |||||
| 07 | Svorka | 1 | 34331158400 | $0.40 | Shop at ECS Tuning | |||||
| 08 | Uchycení | 3 | 61131387626 | $0.57 | Shop at ECS Tuning | |||||
| 09 | Úhlová přípojka | 2 | 61607061615 | $0.48 | Shop at ECS Tuning | |||||
| 10 | Svorka | 2 | 16126750916 | $3.23 | Shop at ECS Tuning | |||||
| 11 | Svorka | 1 | 61667070184 | $0.82 | Shop at ECS Tuning | |||||
| 12 | Skříň konektoru | 2 POL. SCHWARZ | 2 | 12527511146 | $10.02 | Shop at ECS Tuning | ||||
| pouze společně s | ||||||||||
| -- | Plochý kontakt MLK 1.2 | 0,25-0,5MM²/SN | 4 | 61138722315 | Shop at ECS Tuning | |||||
| -- | Utěsnění jednotlivých vodičů | 0,22-1,0MM² | 4 | 12527503411 | $0.18 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI R50 Cooper Jednotlivé díly ostřikovač skla?
- This technical diagram illustrates the Jednotlivé díly ostřikovač skla within the Vozidlo elektrika group for the MINI R50 Cooper produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Vstřikovací tryska vyhřívaná (Part #61667045429).
- Which models use the hardware listed in this Jednotlivé díly ostřikovač skla?
- The hardware and components featured in the Jednotlivé díly ostřikovač skla are specific to the MINI R50 Cooper produced during 2000. These technical specifications ensure that parts like the Vstřikovací tryska vyhřívaná (61667045429) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Jednotlivé díly ostřikovač skla assembly?
- Each item in the Jednotlivé díly ostřikovač skla corresponds to the numbered list below the illustration. For the MINI R50 Cooper, you can identify the Vstřikovací tryska vyhřívaná by locating its position on the schematic, which then links to the official BMW part number 61667045429 for the Vozidlo elektrika section.
