Různé spínače for BMW MINI R50 Cooper (2000)

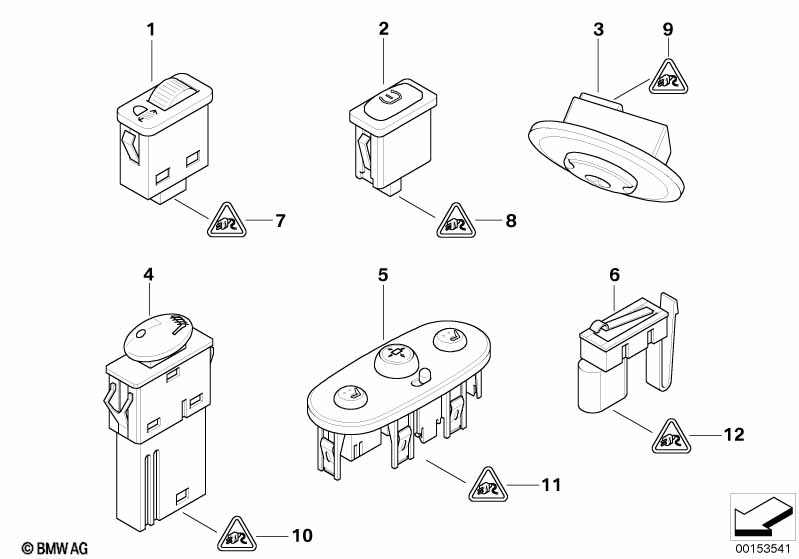

This Různé spínače technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Přepínač regulace sklonu světlometů | 1 | 61318360460 | $44.90 | Shop at ECS Tuning | |||||
| 02 | Spínač kontrola tlaku v pneumatikách | 1 | 61316909518 | $44.25 | Shop at ECS Tuning | |||||
| 03 | Spínač posuvná střecha | 1 | 61316918396 | $51.31 | Shop at ECS Tuning | |||||
| 04 | Spínač vyhřívání sedadla | 2 | 12/2001 | 61311480866 | $67.34 | +core | Shop at ECS Tuning | |||
| 06 | Spínač přední kapota | 1 | 61311480861 | $14.12 | Shop at ECS Tuning | |||||
| 08 | Opravná sada kryt pouzdra | 4 POL. | X | 61132359994 | Shop at ECS Tuning | |||||
| pouze společně s | ||||||||||
| -- | Zdířkový kontakt MQS s kabelem | 0,2- 0,5 QMM | X | 61130005197 | $1.65 | Shop at ECS Tuning | ||||
| -- | Zdířkový kontakt MQS s kabelem | 0,5-0,75 MM² AG | X | 61130056960 | Shop at ECS Tuning | |||||
| 09 | Opravná sada kryt pouzdra | 6 POL. | 1 | 61132359992 | Shop at ECS Tuning | |||||
| pouze společně s | ||||||||||
| -- | Zdířkový kontakt MQS s kabelem | 0,5-0,75 MM² AG | 6 | 61130056960 | Shop at ECS Tuning | |||||
| 12 | Opravná sada kryt pouzdra | 2 POL. | 1 | 61132359999 | Shop at ECS Tuning | |||||
| pouze společně s | ||||||||||
| -- | Zdířkový kontakt MQS ELA s kabelem | 0,5-0,75 MM² AG | X | 61130056384 | Shop at ECS Tuning | |||||
| -- | Zdířkový kontakt MQS ELA s kabelem | 0,35-0,5 MM² AG | X | 61130056961 | Shop at ECS Tuning | |||||
Notes
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
