Diagnostický konektor for BMW MINI R50 Cooper (2000)

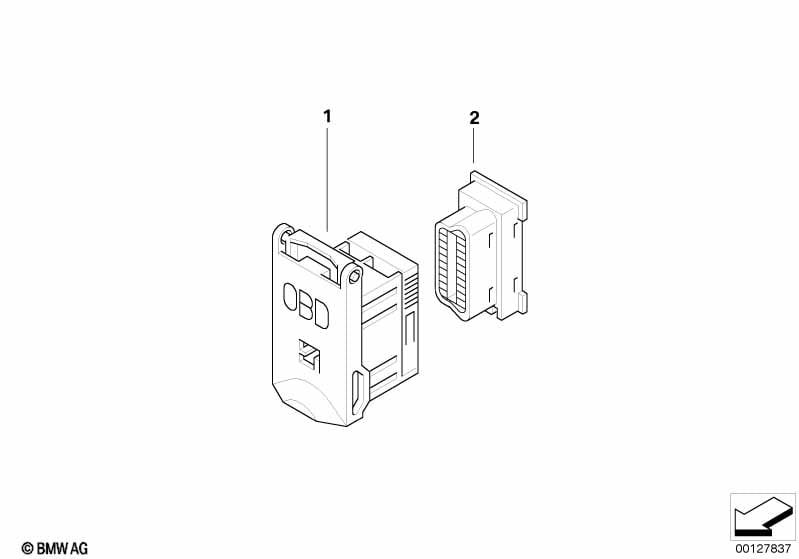

This Diagnostický konektor technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Víko s rámem OBD-zásuvka | GRAU | 1 | 61136901665 | $5.33 | Shop at ECS Tuning | ||||
| Pro vozidla s Xenonová světla |
S522A=Ano |
|||||||||
| 01 | Víko s rámem OBD-zásuvka | BLAU | 1 | 61136920069 | $5.83 | Shop at ECS Tuning | ||||
| 02 | Skříň konektoru | 16 POL. | 1 | 61138380698 | $4.40 | Shop at ECS Tuning | ||||
| vhodné pouze pro | ||||||||||
| -- | Plochý pružný kontakt Microtimer | 0,35MM²/AU | X | 61138366598 | $1.05 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI R50 Cooper Diagnostický konektor?
- This technical diagram illustrates the Diagnostický konektor within the Vozidlo elektrika group for the MINI R50 Cooper produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Víko s rámem OBD-zásuvka (Part #61136901665).
- Which models use the hardware listed in this Diagnostický konektor?
- The hardware and components featured in the Diagnostický konektor are specific to the MINI R50 Cooper produced during 2000. These technical specifications ensure that parts like the Víko s rámem OBD-zásuvka (61136901665) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Diagnostický konektor assembly?
- Each item in the Diagnostický konektor corresponds to the numbered list below the illustration. For the MINI R50 Cooper, you can identify the Víko s rámem OBD-zásuvka by locating its position on the schematic, which then links to the official BMW part number 61136901665 for the Vozidlo elektrika section.
