Relé svorka 15N Z7_2 for BMW 2 Series F45 Active Tourer 218d (2015)

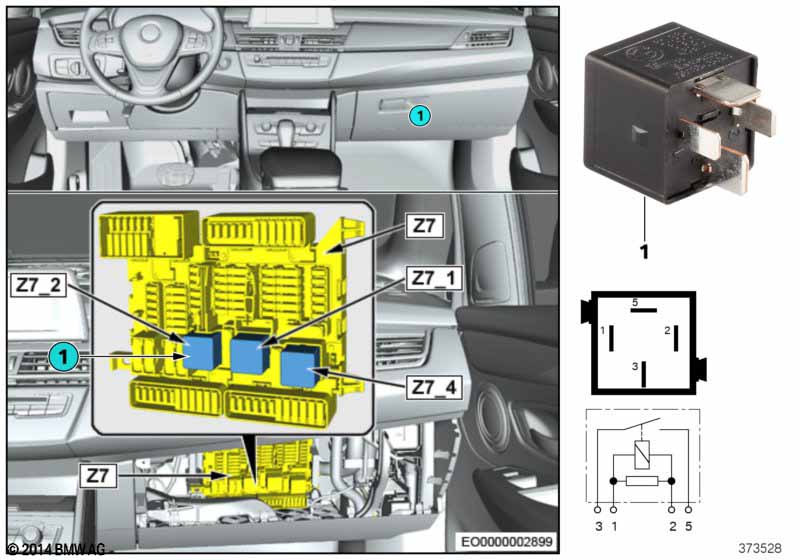

This Relé svorka 15N Z7_2 technical drawing provides a detailed breakdown of the assembly for the 2 Series F45 Active Tourer 218d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Varianta karosérie zobrazená na obrázku slouží pouze jako příklad, a proto se může lišit od originálu. |
|||||||||
| 01 | Relé kontakt černý | LVA | 1 | 61366901469 | $13.96 | +core | Shop at ECS Tuning | |||
Notes
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series F45 Active Tourer 218d Relé svorka 15N Z7_2?
- This technical diagram illustrates the Relé svorka 15N Z7_2 within the Vozidlo elektrika group for the 2 Series F45 Active Tourer 218d produced during 2015. It provides a detailed exploded view of the components, identifying key parts such as the Relé kontakt černý (Part #61366901469).
- Which models use the hardware listed in this Relé svorka 15N Z7_2?
- The hardware and components featured in the Relé svorka 15N Z7_2 are specific to the 2 Series F45 Active Tourer 218d produced during 2015. These technical specifications ensure that parts like the Relé kontakt černý (61366901469) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Relé svorka 15N Z7_2 assembly?
- Each item in the Relé svorka 15N Z7_2 corresponds to the numbered list below the illustration. For the 2 Series F45 Active Tourer 218d, you can identify the Relé kontakt černý by locating its position on the schematic, which then links to the official BMW part number 61366901469 for the Vozidlo elektrika section.
