Kabel akumulátoru/kostřicí kabel for BMW 2 Series F74 Gran Coupé 216 (2025)

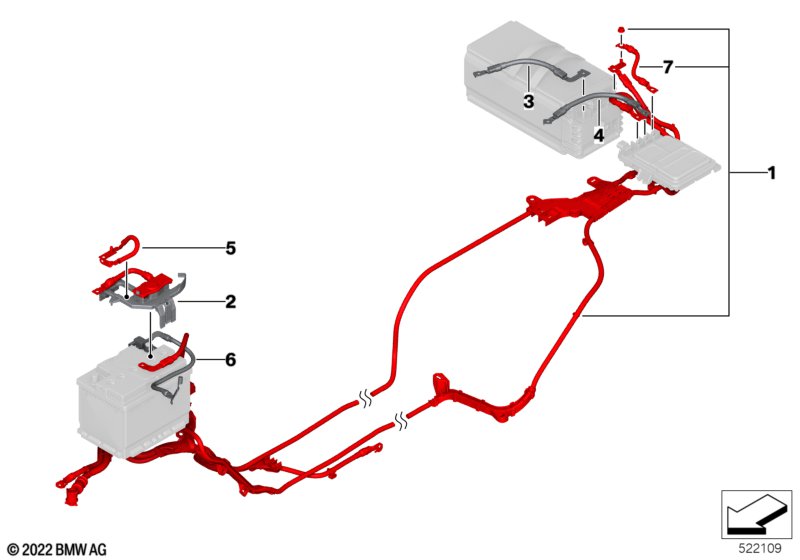

This Kabel akumulátoru/kostřicí kabel technical drawing provides a detailed breakdown of the assembly for the 2 Series F74 Gran Coupé 216. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Kabel akumulátoru plus podlaha vozidla | 12V/48V | 1 | 61125A90877 | Shop at ECS Tuning | |||||
| pouze společně s | ||||||||||
| -- | Uzavírací víko | 48V | 1 | 61135A086B0 | Shop at ECS Tuning | |||||
| -- | Kabelová spojka | L=200MM/B=4,6MM | 1 | 61138383722 | $0.08 | Shop at ECS Tuning | ||||
| -- | Šestihranná matice | M8-A2-70 | 1 | 07119904920 | $1.29 | Shop at ECS Tuning | ||||
| 02 | Dělicí prvek | 48V | 1 | 61125A83C34 | Shop at ECS Tuning | |||||
| 03 | Kabel akumulátoru minus | 48V | 1 | 61125A5E8B3 | Shop at ECS Tuning | |||||
| 04 | Kostřicí kabel | 48V | 1 | 61125A37EA3 | Shop at ECS Tuning | |||||
| 05 | Kabel akumulátoru plus | 1 | 61125B5AC82 | Shop at ECS Tuning | ||||||
| 06 | Kabel akumulátoru minus IBS | 1 | 61215B3E981 | Shop at ECS Tuning | ||||||
| 07 | Kabel akumulátoru Plus | 48V | 1 | 61125A5EC84 | Shop at ECS Tuning | |||||
