Kabel pro opravu systému airbagů for BMW 2 Series U06 Active Tourer 230eX (2025)

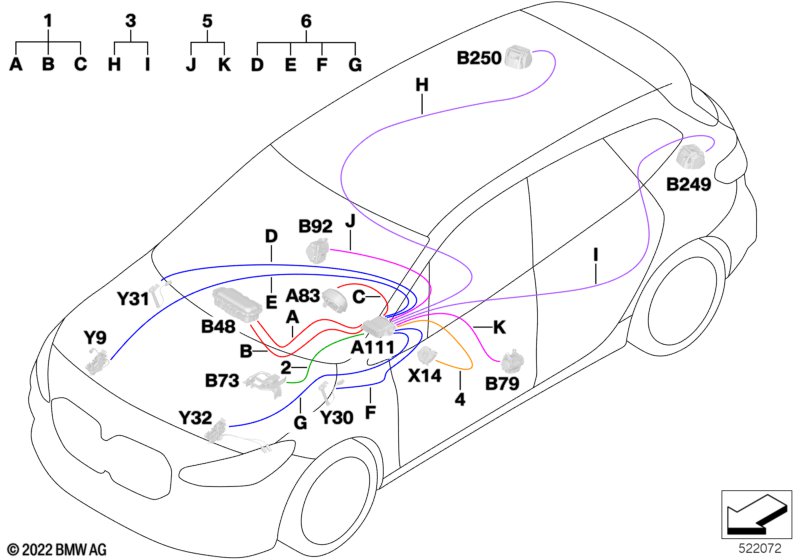

This Kabel pro opravu systému airbagů technical drawing provides a detailed breakdown of the assembly for the 2 Series U06 Active Tourer 230eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Kabel pro opravu systému airbagů | 1 | 61125A64286 | Shop at ECS Tuning | ||||||
| 02 | Kabel pro opravu systému airbagů | 1 | 61125A64285 | Shop at ECS Tuning | ||||||
| 03 | Kabel pro opravu systému airbagů | 1 | 61115A409C2 | Shop at ECS Tuning | ||||||
| 04 | Kabel pro opravu systému airbagů | 1 | 61115A409C4 | Shop at ECS Tuning | ||||||
| 05 | Kabel pro opravu systému airbagů | 1 | 61115A409C5 | Shop at ECS Tuning | ||||||
| 06 | Kabel pro opravu systému airbagů | 1 | 61115A40A92 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series U06 Active Tourer 230eX Kabel pro opravu systému airbagů?
- This technical diagram illustrates the Kabel pro opravu systému airbagů within the Vozidlo elektrika group for the 2 Series U06 Active Tourer 230eX produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Kabel pro opravu systému airbagů (Part #61125A64286).
- Which models use the hardware listed in this Kabel pro opravu systému airbagů?
- The hardware and components featured in the Kabel pro opravu systému airbagů are specific to the 2 Series U06 Active Tourer 230eX produced during 2025. These technical specifications ensure that parts like the Kabel pro opravu systému airbagů (61125A64286) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Kabel pro opravu systému airbagů assembly?
- Each item in the Kabel pro opravu systému airbagů corresponds to the numbered list below the illustration. For the 2 Series U06 Active Tourer 230eX, you can identify the Kabel pro opravu systému airbagů by locating its position on the schematic, which then links to the official BMW part number 61125A64286 for the Vozidlo elektrika section.
