Napájecí kabel hlavní kabelový svazek for BMW 5 Series G90 M5 M5 (2025)

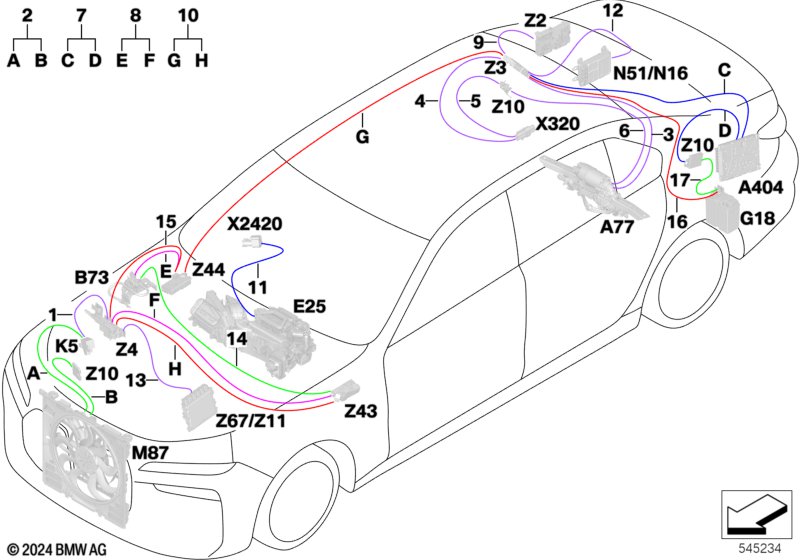

This Napájecí kabel hlavní kabelový svazek technical drawing provides a detailed breakdown of the assembly for the 5 Series G90 M5 M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Napájecí vedení | 1000W | 1 | 61115A99B97 | NoS | Shop at ECS Tuning | ||||
| 02 | Opravárenský modul napájecího vedení | 1000W | 1 | 61115A99B95 | NoS | Shop at ECS Tuning | ||||
| 04 | Napájecí vedení B+ rozvodnice/HSR | 1 | 61115A57DF9 | Shop at ECS Tuning | ||||||
| 05 | Napájecí vedení ukostření HSR | 1 | 61115A57DF7 | Shop at ECS Tuning | ||||||
| 08 | Opravárenský modul napájecího vedení | 1 | 61115A57E81 | Shop at ECS Tuning | ||||||
| 10 | Napájecí vedení rozvodnice B+ | L= 3740MM | 1 | 61115A99CF4 | NoS | Shop at ECS Tuning | ||||
| 13 | Napájecí vedení | L= 2574MM | 1 | 61125B434F8 | NoS | Shop at ECS Tuning | ||||
| 14 | Napájecí vedení | L= 878MM | 1 | 61125B43508 | NoS | Shop at ECS Tuning | ||||
| 15 | Napájecí vedení | L= 1303MM | 1 | 61125B43509 | NoS | Shop at ECS Tuning | ||||
| 16 | Napájecí vedení | L= 1667MM | 1 | 61125A7C9D8 | NoS | Shop at ECS Tuning | ||||
| 17 | Napájecí vedení ukostření | L= 339MM | 1 | 61125A59345 | NoS | Shop at ECS Tuning |
Notes
- NoS = No Stock (Díl není centrálně skladován.)
