Integrovaný napájecí modul Z67 for BMW MINI F66 JCW

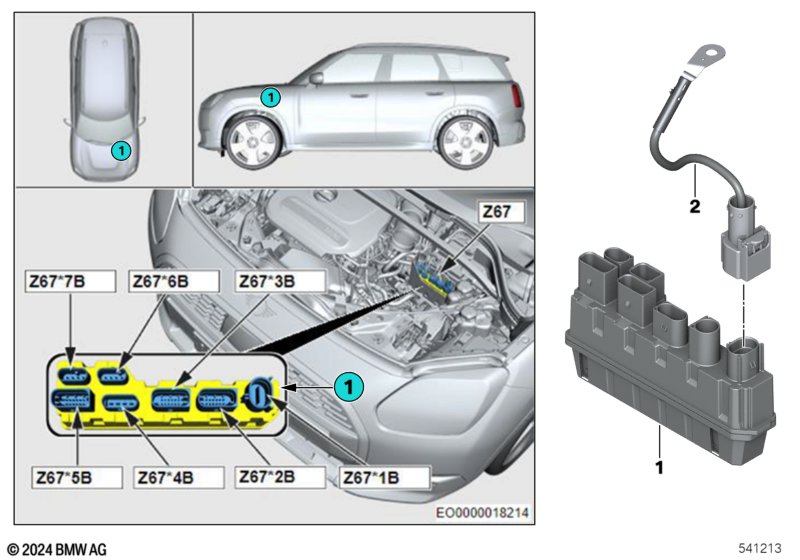

This Integrovaný napájecí modul Z67 technical drawing provides a detailed breakdown of the assembly for the MINI F66 JCW. It includes part names, part numbers and all associated mounting hardware.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Integrovaný napájecí modul | 1 | 12637952991 | Shop at ECS Tuning | ||||||
| 02 | Vedení elektrického napájení | SVM | 1 | 12638490500 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI F66 JCW Integrovaný napájecí modul Z67?
- This technical diagram illustrates the Integrovaný napájecí modul Z67 within the Vozidlo elektrika group for the MINI F66 JCW. It provides a detailed exploded view of the components, identifying key parts such as the Integrovaný napájecí modul (Part #12637952991).
- Which models use the hardware listed in this Integrovaný napájecí modul Z67?
- The hardware and components featured in the Integrovaný napájecí modul Z67 are specific to the MINI F66 JCW. These technical specifications ensure that parts like the Integrovaný napájecí modul (12637952991) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Integrovaný napájecí modul Z67 assembly?
- Each item in the Integrovaný napájecí modul Z67 corresponds to the numbered list below the illustration. For the MINI F66 JCW, you can identify the Integrovaný napájecí modul by locating its position on the schematic, which then links to the official BMW part number 12637952991 for the Vozidlo elektrika section.
