Otáčkoměr/časový spínač for BMW 5 Series E12 528i (1979)

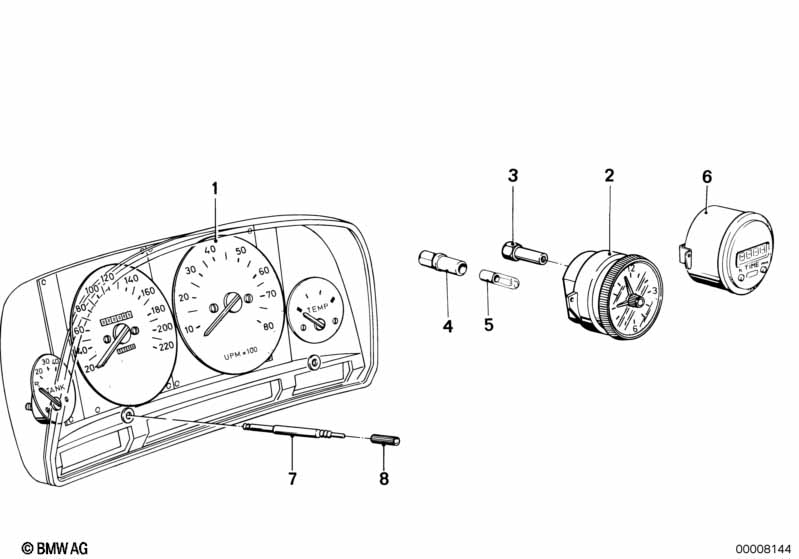

This Otáčkoměr/časový spínač technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Otáčkoměr | 1 | 62131365164 | $395.25 | UKONČENO | Shop at ECS Tuning | ||||
| 02 | Časový spínač | 1 | 09/1979 | 62131356492 | UKONČENO | Shop at ECS Tuning | ||||
| 03 | Stopková matice | 2 | 62131356825 | $0.46 | Shop at ECS Tuning | |||||
| 04 | Objímka žárovky | 1 | 09/1979 | 62131365240 | $1.64 | UKONČENO | Shop at ECS Tuning | |||
| 05 | Žárovka | 12V 1,2W | X | 09/1979 | 63217167000 | $3.00 | Shop at ECS Tuning | |||
| 07 | Vratná hřídel | 1 | 62121363214 | $1.58 | UKONČENO | Shop at ECS Tuning | ||||
| 08 | Tlačítko | 1 | 62121363213 | $2.16 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
