Přístrojová deska for BMW 3 Series E36 M3 (1997)

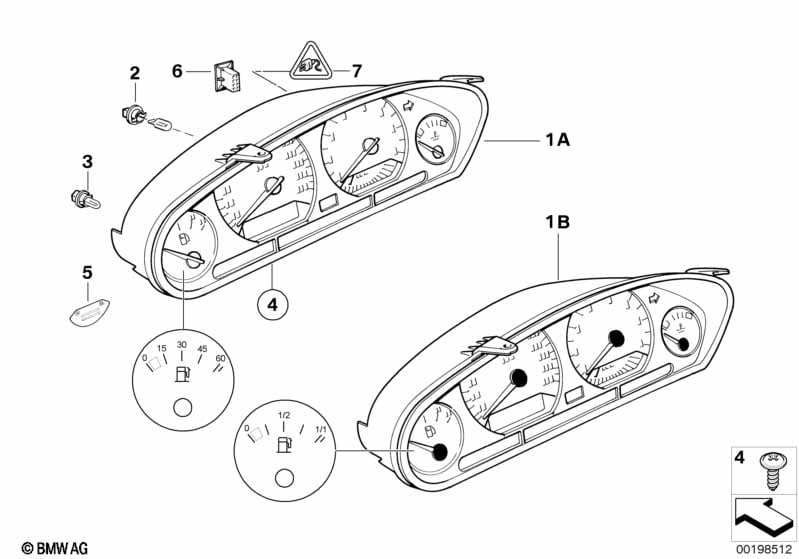

This Přístrojová deska technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1997.

Přístrojová deska
Č. Popis Doplnění Poč.  Od   Do  Číslo dílu Cena Notes
01 RP přístrojová deska nekódovaná MPH 1 10/1997 62112497711 $927.48 Shop at ECS Tuning
Pro vozidla s
Provedení Kanada

L838A=Ano
01 RP REMAN přístrojová deska nekódovaná KM/H 1 10/1997 62112497719 +core Shop at ECS Tuning
02 Objímka žárovky 3 62111392983 $5.06 Shop at ECS Tuning
03 Žárovka W3W 3 07119905358 $1.96 Shop at ECS Tuning
03 Žárovka 12V 1,5W 2 62111391260 $3.00 UKONČENO Shop at ECS Tuning
03 Žárovka 12V 1,2W X 62131383311 $3.00 Shop at ECS Tuning
04 Samořezný šroub s čočkovou hlavou ST4,2X17 2 09/1997 07146977362 $1.09 Shop at ECS Tuning
05 Opravná sada kryt pouzdra 12 POL. 1 61132471237 Shop at ECS Tuning
05 univerzální zdířková skříň nekódovaná 26 POL. 1 61136913626 $1.05 Shop at ECS Tuning
05 Opravná sada kryt pouzdra 26 POL. 1 61132471242 Shop at ECS Tuning
05 Zdířkový kontakt MQS s kabelem 0,2- 0,5 QMM X 61130005197 $1.65 Shop at ECS Tuning
05 Zdířkový kontakt MQS 0.2-0.5MM²/SN X 61138369696 $0.28 Shop at ECS Tuning
Notes
  • +core = plus poplatek za střední část (možnost navrácení původního dílu)
  • Ukončeno = Díl se již nevyrábí.

See Also

Frequently Asked Questions

What assembly is shown in the BMW 3 Series E36 M3 Přístrojová deska?
This technical diagram illustrates the Přístrojová deska within the Indikátory, měřicí systémy group for the 3 Series E36 M3 produced during 1997. It provides a detailed exploded view of the components, identifying key parts such as the RP přístrojová deska nekódovaná (Part #62112497711).
Which models use the hardware listed in this Přístrojová deska?
The hardware and components featured in the Přístrojová deska are specific to the 3 Series E36 M3 produced during 1997. These technical specifications ensure that parts like the RP přístrojová deska nekódovaná (62112497711) are correctly matched to the vehicle's structural and mechanical requirements.
How do I find specific parts within the Přístrojová deska assembly?
Each item in the Přístrojová deska corresponds to the numbered list below the illustration. For the 3 Series E36 M3, you can identify the RP přístrojová deska nekódovaná by locating its position on the schematic, which then links to the official BMW part number 62112497711 for the Indikátory, měřicí systémy section.
