Tachometr/otáčkoměr for BMW R45-R65LS..78-85 R65LS (1983)

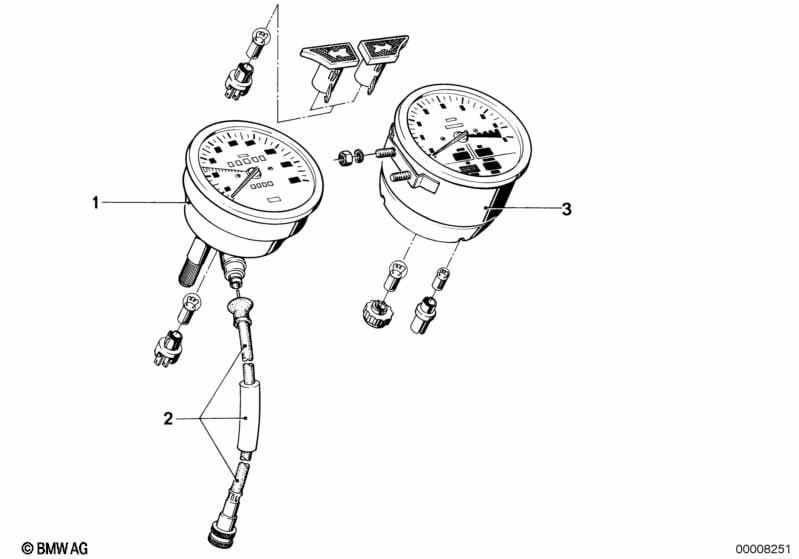

This Tachometr/otáčkoměr technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65LS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1983.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tachometr | MP 3,56W=1,318 | 1 | 01/1980 | 62121244279 | $383.86 | UKONČENO, +core | Shop at ECS Tuning | ||
| Pro vozidla s Provedení Kanada |
Y732A=Ano |
|||||||||
| 01 | Tachometr | KM/H W=0,820 | 1 | 09/1980 | 62121244299 | UKONČENO, +core | Shop at ECS Tuning | |||
| 02 | Hřídel tachometru | 1 | 62121357731 | $54.81 | Shop at ECS Tuning | |||||
| 03 | Otáčkoměr | 1 | 62131244388 | $387.76 | UKONČENO, +core | Shop at ECS Tuning | ||||
Notes
- Ukončeno = Díl se již nevyrábí.
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
