Přídavné přístroje for BMW R45-R65LS..78-85 R45 (1978)

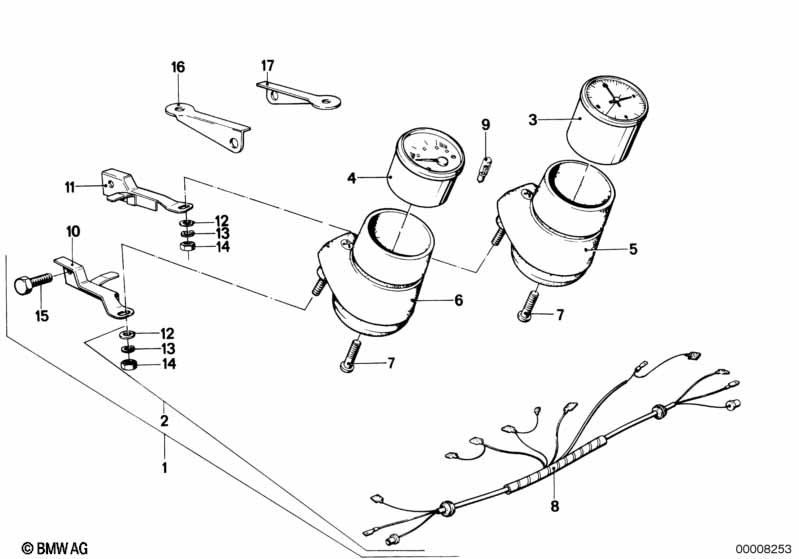

This Přídavné přístroje technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R45. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1978.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Časový spínač | 1 | 62131244638 | $229.48 | UKONČENO, +core | Shop at ECS Tuning | ||||
| 04 | Voltmetr | 1 | 62131244668 | $202.12 | UKONČENO, +core | Shop at ECS Tuning | ||||
| 05 | Uchycení | SW | 1 | 62131243642 | $73.64 | UKONČENO | Shop at ECS Tuning | |||
| 06 | Uchycení | SW | 1 | 62131357868 | $73.64 | UKONČENO | Shop at ECS Tuning | |||
| 07 | Šroub | 2 | 62131243098 | $6.90 | UKONČENO | Shop at ECS Tuning | ||||
| 08 | Kabelová sada přídavné přístroje | 1 | 61121243707 | $38.17 | Shop at ECS Tuning | |||||
| 09 | Žárovka | 12V 2W | 2 | 07119978279 | $1.79 | Shop at ECS Tuning | ||||
| 10 | Držák levý | 1 | 62211238003 | $4.17 | UKONČENO | Shop at ECS Tuning | ||||
| 11 | Držák pravý | 1 | 62211238004 | $4.17 | UKONČENO | Shop at ECS Tuning | ||||
| 12 | Podložka | A6,4-ZNNIV SI | 2 | 07119904202 | Shop at ECS Tuning | |||||
| 13 | Pružná podložka | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 14 | Šestihranná matice | M6-8-ZNNIV SI | 2 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 15 | Šestihranný šroub | M8X30-8.8-ZNS3 | 2 | 07119902901 | $0.25 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
