Přístrojová deska for BMW 2500-3.3Li 3.0S (1974)

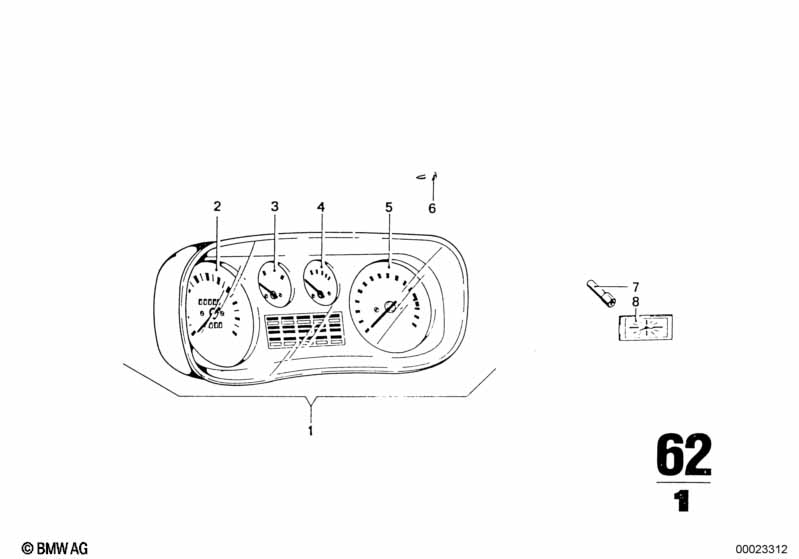

This Přístrojová deska technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0S. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1974.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Tachometr | 1 | 07/1971 | 07/1976 | 62111354462 | $248.50 | UKONČENO | Shop at ECS Tuning | ||
| 03 | Dálkový teploměr | 1 | 62111350610 | UKONČENO | Shop at ECS Tuning | |||||
| 05 | Otáčkoměr | 1 | 08/1968 | 02/1977 | 62111350612 | $366.05 | UKONČENO | Shop at ECS Tuning | ||
| 06 | Samořezný šroub s čočkovou hlavou | 1 | 62111354043 | UKONČENO | Shop at ECS Tuning | |||||
| 07 | Matice | 2 | 62131351218 | UKONČENO | Shop at ECS Tuning | |||||
| 08 | Časový spínač | 1 | 62131357110 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.0S Přístrojová deska?
- This technical diagram illustrates the Přístrojová deska within the Indikátory, měřicí systémy group for the 2500-3.3Li 3.0S produced during 1974. It provides a detailed exploded view of the components, identifying key parts such as the Tachometr (Part #62111354462).
- Which models use the hardware listed in this Přístrojová deska?
- The hardware and components featured in the Přístrojová deska are specific to the 2500-3.3Li 3.0S produced during 1974. These technical specifications ensure that parts like the Tachometr (62111354462) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Přístrojová deska assembly?
- Each item in the Přístrojová deska corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.0S, you can identify the Tachometr by locating its position on the schematic, which then links to the official BMW part number 62111354462 for the Indikátory, měřicí systémy section.
