Tachometr/otáčkoměr přístrojová deska for BMW MINI R50 Cooper (2000)

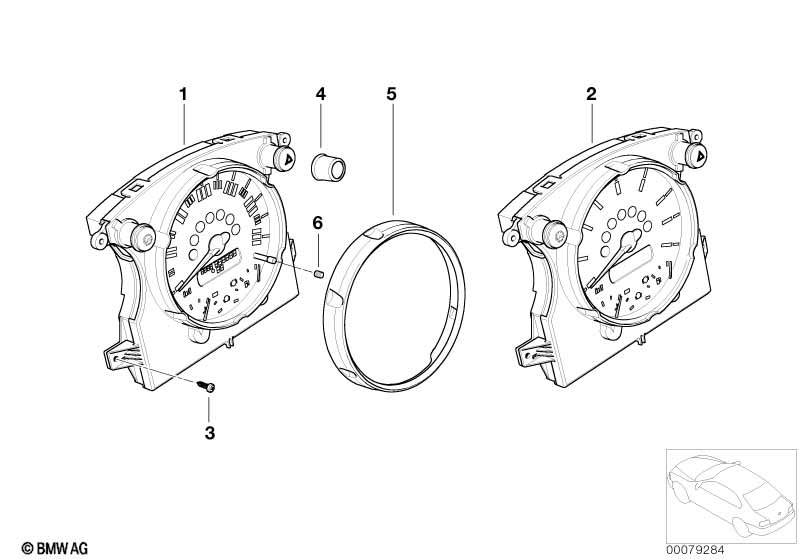

This Tachometr/otáčkoměr přístrojová deska technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tachometr přístrojová deska | MPH | 1 | 62109126988 | Shop at ECS Tuning | |||||
| 01 | Tachometr přístrojová deska | KM/H | 1 | 62109126990 | Shop at ECS Tuning | |||||
| 03 | Šroub Torx s podložkou | 2 | 62117062737 | $0.70 | Shop at ECS Tuning | |||||
| 04 | Ozdobný kroužek | SCHWARZ | 2 | 62101156043 | $9.91 | Shop at ECS Tuning | ||||
| 04 | Ozdobný kroužek | CHROM | 2 | 62106936278 | $16.61 | Shop at ECS Tuning | ||||
| 05 | Ozdobný kroužek | SILBER | 1 | 51457059167 | $7.68 | Shop at ECS Tuning | ||||
| 05 | Ozdobný kroužek | ANTHRAZIT | 1 | 51457059168 | $7.68 | Shop at ECS Tuning | ||||
| 05 | Ozdobný kroužek | ANTHRAZIT MATT | 1 | 51456972979 | $7.68 | Shop at ECS Tuning | ||||
| 05 | Ozdobný kroužek | CHROM | 1 | 51457132400 | $19.25 | Shop at ECS Tuning | ||||
| 06 | Otočný knoflík | 1 | 62116913298 | $14.36 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI R50 Cooper Tachometr/otáčkoměr přístrojová deska?
- This technical diagram illustrates the Tachometr/otáčkoměr přístrojová deska within the Indikátory, měřicí systémy group for the MINI R50 Cooper produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Tachometr přístrojová deska (Part #62109126988).
- Which models use the hardware listed in this Tachometr/otáčkoměr přístrojová deska?
- The hardware and components featured in the Tachometr/otáčkoměr přístrojová deska are specific to the MINI R50 Cooper produced during 2000. These technical specifications ensure that parts like the Tachometr přístrojová deska (62109126988) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Tachometr/otáčkoměr přístrojová deska assembly?
- Each item in the Tachometr/otáčkoměr přístrojová deska corresponds to the numbered list below the illustration. For the MINI R50 Cooper, you can identify the Tachometr přístrojová deska by locating its position on the schematic, which then links to the official BMW part number 62109126988 for the Indikátory, měřicí systémy section.
