Přístrojová deska Chrono Paket for BMW MINI R50 Cooper (2000)

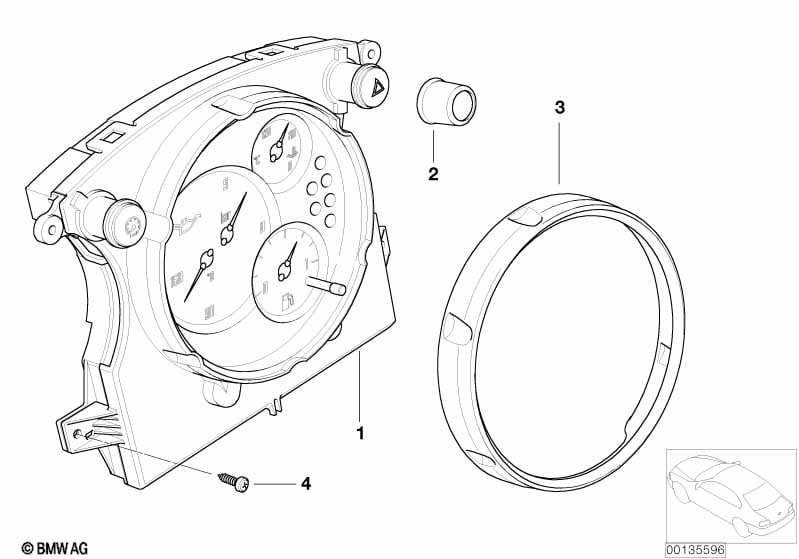

This Přístrojová deska Chrono Paket technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Přístrojová deska Chrono Paket | 1 | 62109126996 | Shop at ECS Tuning | ||||||
| 02 | Ozdobný kroužek | SCHWARZ | 2 | 62101156043 | $9.91 | Shop at ECS Tuning | ||||
| 02 | Ozdobný kroužek | CHROM | 2 | 62106936278 | $16.61 | Shop at ECS Tuning | ||||
| 03 | Ozdobný kroužek | SILBER | 1 | 51457059167 | $7.68 | Shop at ECS Tuning | ||||
| 03 | Ozdobný kroužek | ANTHRAZIT | 1 | 51457059168 | $7.68 | Shop at ECS Tuning | ||||
| 03 | Ozdobný kroužek | ANTHRAZIT MATT | 1 | 51456972979 | $7.68 | Shop at ECS Tuning | ||||
| 03 | Ozdobný kroužek | CHROM | 1 | 51457132400 | $19.25 | Shop at ECS Tuning | ||||
| 04 | Šroub Torx s podložkou | 2 | 62117062737 | $0.70 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI R50 Cooper Přístrojová deska Chrono Paket?
- This technical diagram illustrates the Přístrojová deska Chrono Paket within the Indikátory, měřicí systémy group for the MINI R50 Cooper produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Přístrojová deska Chrono Paket (Part #62109126996).
- Which models use the hardware listed in this Přístrojová deska Chrono Paket?
- The hardware and components featured in the Přístrojová deska Chrono Paket are specific to the MINI R50 Cooper produced during 2000. These technical specifications ensure that parts like the Přístrojová deska Chrono Paket (62109126996) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Přístrojová deska Chrono Paket assembly?
- Each item in the Přístrojová deska Chrono Paket corresponds to the numbered list below the illustration. For the MINI R50 Cooper, you can identify the Přístrojová deska Chrono Paket by locating its position on the schematic, which then links to the official BMW part number 62109126996 for the Indikátory, měřicí systémy section.
