Jednotlivé díly světlomet for BMW 5 Series E12 518 (1981)

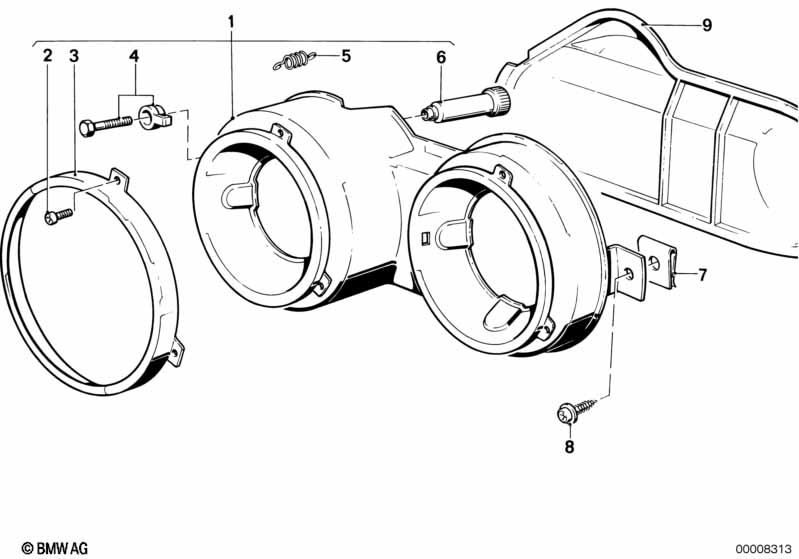

This Jednotlivé díly světlomet technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 518. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Nosná konstrukce levá | 1 | 63121360195 | $235.48 | Shop at ECS Tuning | |||||
| 01 | Nosná konstrukce pravá | 1 | 63121360196 | $271.80 | UKONČENO | Shop at ECS Tuning | ||||
| 02 | Samořezný šroub s čočkovou hlavou | B3,9X8 | 6 | 03/1975 | 63121359777 | $0.42 | Shop at ECS Tuning | |||
| 03 | Přídržný kroužek skla | 4 | 63121362477 | $32.43 | Shop at ECS Tuning | |||||
| Pro vozidla s Ostřikovač světlometů |
=Ano |
|||||||||
| 03 | Rám držáku skla | 2 | 03/1975 | 63121360614 | $55.73 | UKONČENO | Shop at ECS Tuning | |||
| 03 | Rám držáku skla | 2 | 03/1975 | 63121360615 | $55.73 | Shop at ECS Tuning | ||||
| 05 | Tažná pružina | 4 | 63121359719 | $2.68 | Shop at ECS Tuning | |||||
| 06 | Stavěcí matice | 8 | 63121354449 | $1.61 | UKONČENO | Shop at ECS Tuning | ||||
| 07 | Matice na plech | ST6,3-1-ZNS3 | 6 | 07129904231 | Shop at ECS Tuning | |||||
| 08 | Šroub na plech | 6 | 63121352070 | $0.62 | Shop at ECS Tuning | |||||
| 09 | Kryt levý | 1 | 51711820251 | $11.84 | Shop at ECS Tuning | |||||
| 09 | Kryt pravý | 1 | 08/1980 | 51711864584 | UKONČENO | Shop at ECS Tuning | ||||
| Pro vozidla s Ostřikovač světlometů |
=Ano |
|||||||||
| 09 | Kryt levý | 1 | 51711826097 | $14.79 | Shop at ECS Tuning | |||||
| 09 | Kryt pravý | 1 | 08/1980 | 51711864588 | UKONČENO | Shop at ECS Tuning | ||||
Notes
- Ukončeno = Díl se již nevyrábí.
