Boční značkovací světlo for BMW 3 Series E30 325i (1991)

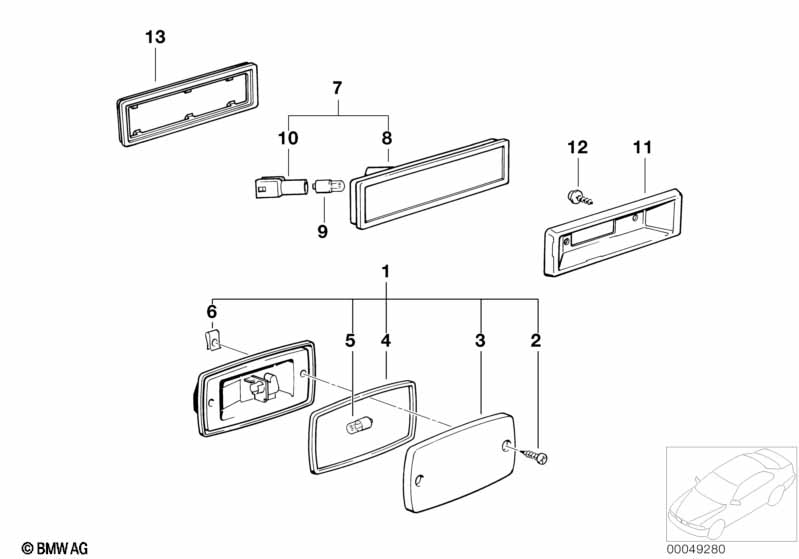

This Boční značkovací světlo technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.

Boční značkovací světlo
Č. Popis Doplnění Poč.  Od   Do  Číslo dílu Cena Notes
07 Boční značkovací světlo přední YELLOW 2 09/1985 63141380560 $26.21 Shop at ECS Tuning
07 Boční značkovací světlo zadní RED 2 09/1985 63141380561 $26.21 Shop at ECS Tuning
08 Světelný kotouč přední 2 09/1985 63141377849 $23.40 Shop at ECS Tuning
08 Světelný kotouč zadní 2 09/1985 63141377850 $23.40 Shop at ECS Tuning
09 Žárovka Longlife 5W 4 09/1985 63217160797 $1.96 Shop at ECS Tuning
10 Objímka žárovky 4 09/1985 63141380562 $9.02 UKONČENO Shop at ECS Tuning
Notes
  • Ukončeno = Díl se již nevyrábí.
