Třetí brzdové světlo for BMW 3 Series E30 325i (1991)

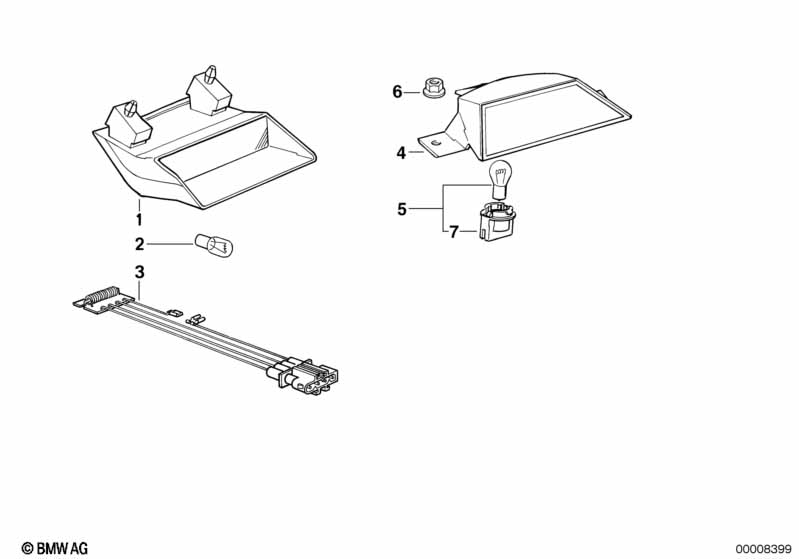

This Třetí brzdové světlo technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 04 | brzdové světlo | 1 | 07/1988 | 63251385187 | $61.95 | UKONČENO | Shop at ECS Tuning | |||
| 05 | Žárovka | P21W/12V/21W | X | 07/1988 | 63217160789 | $1.96 | Shop at ECS Tuning | |||
| 05 | Žárovka Longlife | P21W/12V/21W | X | 07/1988 | 63217160790 | $2.38 | Shop at ECS Tuning | |||
| 06 | Plastová matice čep s hrubým závitem | M6 | 1 | 07/1988 | 16131176747 | $0.53 | Shop at ECS Tuning | |||
| 07 | Objímka žárovky | P21W | 1 | 63218355883 | $7.32 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 325i Třetí brzdové světlo?
- This technical diagram illustrates the Třetí brzdové světlo within the Osvětlovací souprava group for the 3 Series E30 325i produced during 1991. It provides a detailed exploded view of the components, identifying key parts such as the brzdové světlo (Part #63251385187).
- Which models use the hardware listed in this Třetí brzdové světlo?
- The hardware and components featured in the Třetí brzdové světlo are specific to the 3 Series E30 325i produced during 1991. These technical specifications ensure that parts like the brzdové světlo (63251385187) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Třetí brzdové světlo assembly?
- Each item in the Třetí brzdové světlo corresponds to the numbered list below the illustration. For the 3 Series E30 325i, you can identify the brzdové světlo by locating its position on the schematic, which then links to the official BMW part number 63251385187 for the Osvětlovací souprava section.
