Vnit. osvětl./osvětlení SPZ for BMW 7 Series E23 728i (1986)

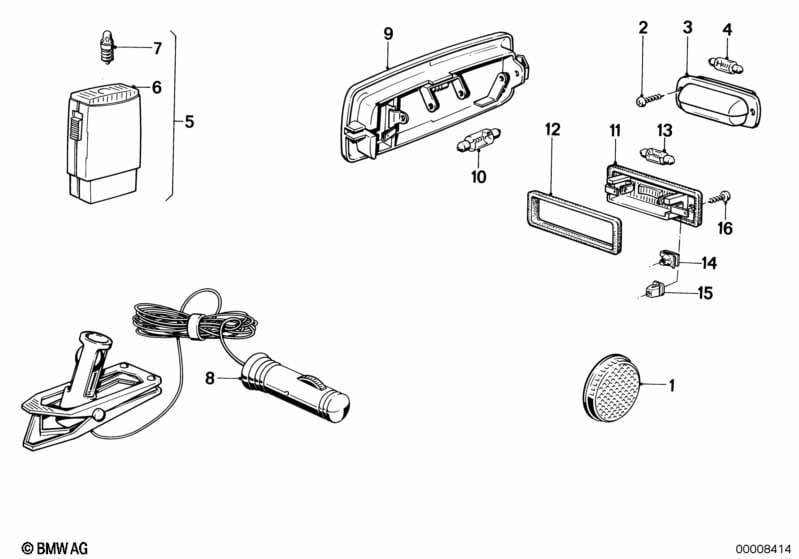

This Vnit. osvětl./osvětlení SPZ technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Odrazka | 4 | 63141363100 | $8.48 | UKONČENO | Shop at ECS Tuning | ||||
| 02 | Samořezný šroub s čočkovou hlavou | ST4,2X16-ABW | 4 | 07119906749 | $0.11 | Shop at ECS Tuning | ||||
| 03 | Světlo | 2 | 63311362711 | $27.29 | UKONČENO | Shop at ECS Tuning | ||||
| 04 | Žárovka | 12V 5W | X | 63217160805 | $1.58 | Shop at ECS Tuning | ||||
| 05 | Ruční svítilna nabíjecí | 10 ST. | 1 | 82119413147 | $27.25 | UKONČENO, +core | Shop at ECS Tuning | |||
| 06 | Lens | 1 | 82119413148 | $2.54 | UKONČENO | Shop at ECS Tuning | ||||
| 07 | Žárovka | 0,18A | 1 | 63171360377 | $5.14 | UKONČENO | Shop at ECS Tuning | |||
| 07 | Žárovka | 0,25 A | 1 | 63217167019 | $1.50 | UKONČENO | Shop at ECS Tuning | |||
| 08 | Ruční svítilna s kabelem | 1 | 72609556461 | UKONČENO | Shop at ECS Tuning | |||||
| Pro vozidla s Provedení Švédsko |
=Ano |
|||||||||
| 09 | Vnitřní osvětlení | 1 | 63311364442 | $29.61 | UKONČENO, +core | Shop at ECS Tuning | ||||
| 10 | Žárovka | 12V 10W | X | 63217160912 | $1.96 | Shop at ECS Tuning | ||||
| 11 | Osvětlení registrační značky | HELLA | 1 | 04/1993 | 63261372763 | Shop at ECS Tuning | ||||
| 12 | Těsnění | SIDLER | 2 | 63261354034 | $4.24 | Shop at ECS Tuning | ||||
| 13 | Žárovka | 12V 5W | X | 63217160805 | $1.58 | Shop at ECS Tuning | ||||
| 14 | Matice na plech | ST3,9-4 | 4 | 07129901640 | UKONČENO | Shop at ECS Tuning | ||||
| 15 | Rozpěrná matice | 4 | 63261378067 | $0.25 | Shop at ECS Tuning | |||||
| 16 | Samořezný šroub s čočkovou hlavou | ST3,9X13 | 4 | 07119907720 | $2.09 | Shop at ECS Tuning | ||||
Notes
- Ukončeno = Díl se již nevyrábí.
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
