Dodatečná sada ruční svítilna for BMW 3 Series E21 316 (1982)

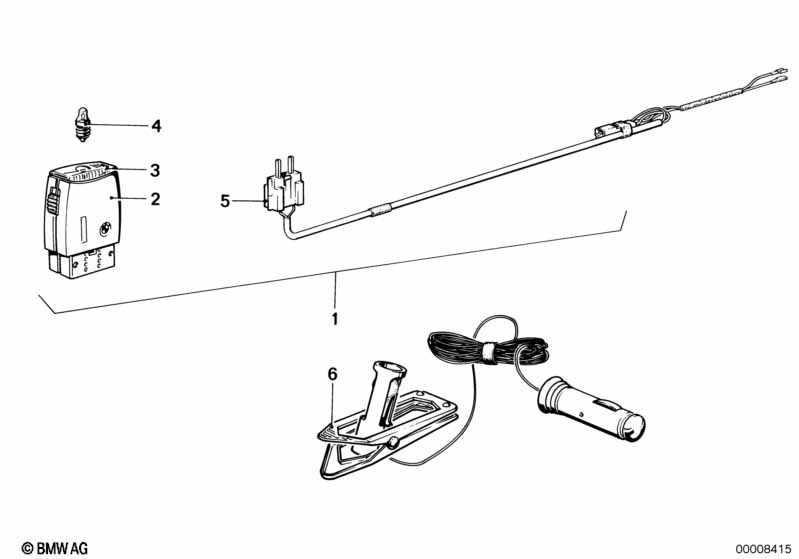

This Dodatečná sada ruční svítilna technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 316. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Ruční svítilna nabíjecí | 10 ST. | 1 | 82119413147 | $27.25 | UKONČENO, +core | Shop at ECS Tuning | |||
| 03 | Lens | 1 | 82119413148 | $2.54 | UKONČENO | Shop at ECS Tuning | ||||
| 04 | Žárovka | 0,18A | 1 | 63171360377 | $5.14 | UKONČENO | Shop at ECS Tuning | |||
| 04 | Žárovka | 0,25 A | 1 | 63217167019 | $1.50 | UKONČENO | Shop at ECS Tuning | |||
| 05 | Kabel nabíjecí ruční svítilna | 1 | 61121359815 | $13.73 | UKONČENO | Shop at ECS Tuning | ||||
| 06 | Ruční svítilna s kabelem | 1 | 72609556461 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 316 Dodatečná sada ruční svítilna?
- This technical diagram illustrates the Dodatečná sada ruční svítilna within the Osvětlovací souprava group for the 3 Series E21 316 produced during 1982. It provides a detailed exploded view of the components, identifying key parts such as the Ruční svítilna nabíjecí (Part #82119413147).
- Which models use the hardware listed in this Dodatečná sada ruční svítilna?
- The hardware and components featured in the Dodatečná sada ruční svítilna are specific to the 3 Series E21 316 produced during 1982. These technical specifications ensure that parts like the Ruční svítilna nabíjecí (82119413147) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Dodatečná sada ruční svítilna assembly?
- Each item in the Dodatečná sada ruční svítilna corresponds to the numbered list below the illustration. For the 3 Series E21 316, you can identify the Ruční svítilna nabíjecí by locating its position on the schematic, which then links to the official BMW part number 82119413147 for the Osvětlovací souprava section.
