Světlomet for BMW R45-R65LS..78-85 R65LS (1983)

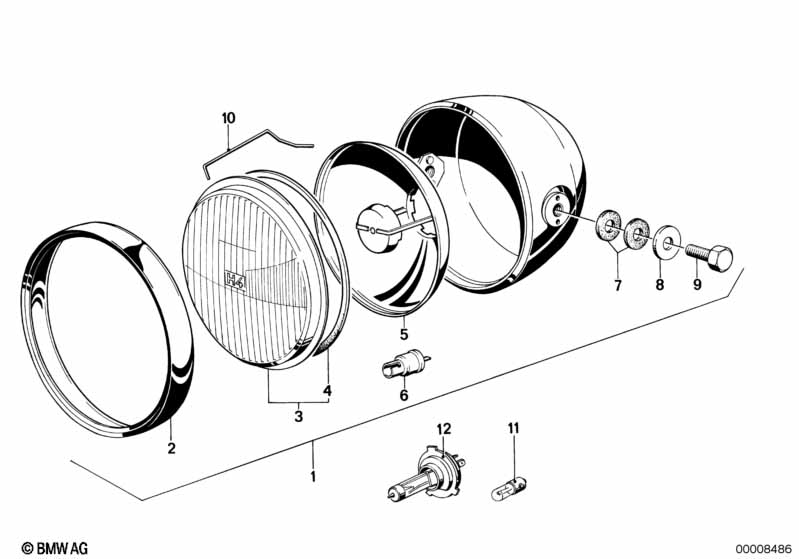

This Světlomet technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65LS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1983.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Světlomet | H4 | 1 | 63121243533 | $507.08 | +core | Shop at ECS Tuning | |||
| 02 | Přídržný kroužek | 1 | 63121243539 | $204.71 | Shop at ECS Tuning | |||||
| 03 | Dodatečná sada rozptylové světlo | 1 | 63121243541 | $136.46 | Shop at ECS Tuning | |||||
| 04 | Těsnění | 1 | 63121243595 | $17.29 | Shop at ECS Tuning | |||||
| 05 | Reflektor | 1 | 63121243537 | $257.54 | UKONČENO, +core | Shop at ECS Tuning | ||||
| 06 | Objímka žárovky | 1 | 62148680130 | $3.25 | Shop at ECS Tuning | |||||
| 07 | Pryžový kotouč | 4 | 63121358129 | $1.74 | Shop at ECS Tuning | |||||
| 08 | Přítlačný kotouč | 2 | 63121244378 | $5.34 | Shop at ECS Tuning | |||||
| 09 | Šestihranný šroub | 2 | 63121244379 | $12.69 | Shop at ECS Tuning | |||||
| 10 | Přídržné péro | 6 | 63121357468 | $4.22 | Shop at ECS Tuning | |||||
| 11 | Žárovka | 12V 4W | 1 | 07509063576 | $1.58 | Shop at ECS Tuning | ||||
| 12 | Žárovka | H4 | 1 | 63121354619 | $13.63 | Shop at ECS Tuning | ||||
| Pro vozidla s Provedení Francie |
Y741A=Ano |
|||||||||
| 12 | Žárovka, žlutá | H4 | 1 | 63121356105 | $35.10 | Shop at ECS Tuning | ||||
Notes
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
- Ukončeno = Díl se již nevyrábí.
