Přídavné světlomety for BMW R45-R65LS..78-85 R45 (1978)
This Přídavné světlomety technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R45. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1978.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Přídavné světlomety | 1 | 63171243126 | $100.97 | UKONČENO, +core | Shop at ECS Tuning | ||||
| 02 | Mlhový světlomet | 1 | 63171243125 | $100.97 | UKONČENO | Shop at ECS Tuning | ||||
| 03 | Třmen | 1 | 63171237600 | $98.75 | Shop at ECS Tuning | |||||

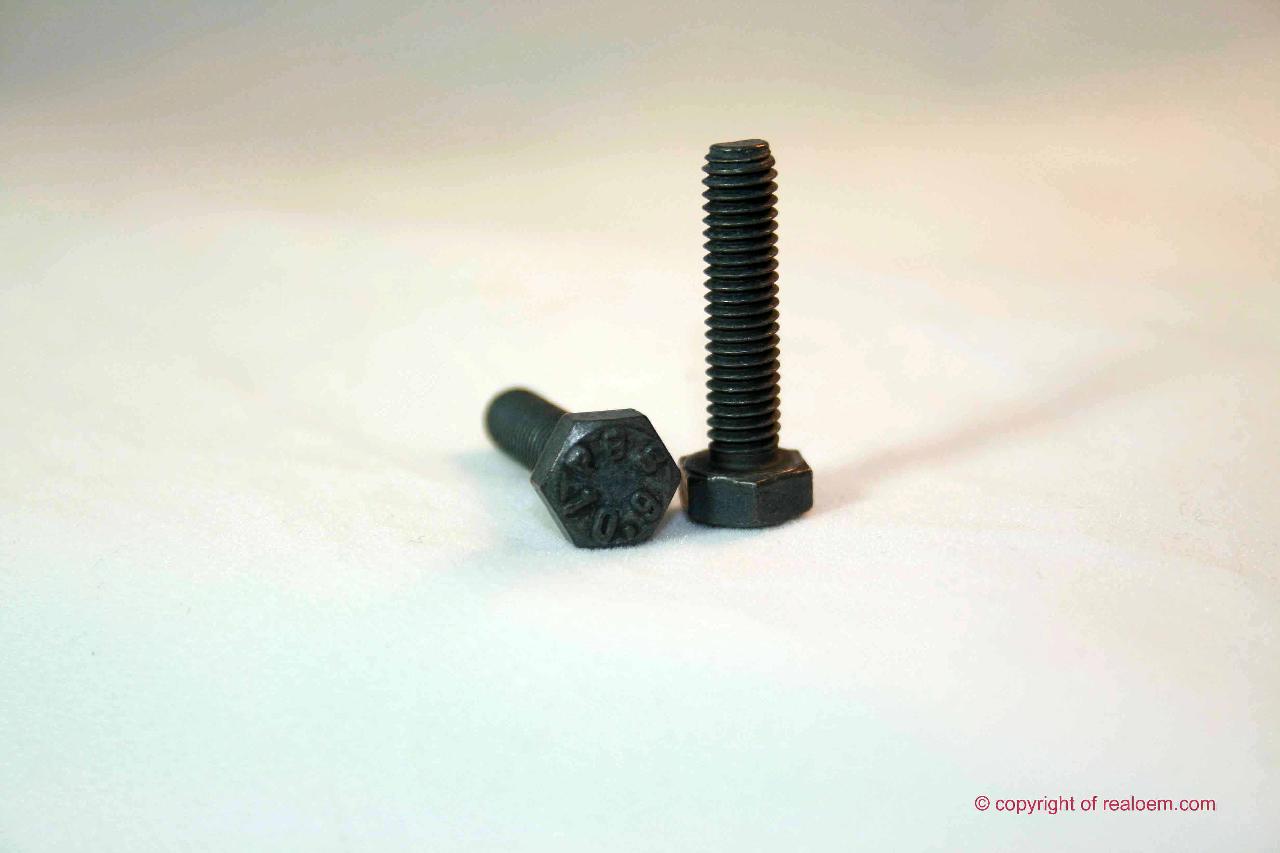

| 04 | Šestihranný šroub | M6X25 | 2 | 07119913589 | $0.62 | Shop at ECS Tuning | ||||
| 05 | Podložka | A6,4-ZNNIV SI | 4 | 07119904202 | Shop at ECS Tuning | |||||
| 06 | Šestihranná matice samojisticí | M6-10 ZN | 2 | 07/1985 | 07129922705 | $0.27 | UKONČENO | Shop at ECS Tuning | ||
| 06 | Šestihranná matice samojisticí | M6 ZNNIV SI | 2 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| 07 | Žárovka | 12V 55W H1 | 2 | 63217160777 | $11.68 | Shop at ECS Tuning | ||||
| 08 | Šestihranný šroub | M8X28 | 2 | 07119913671 | UKONČENO | Shop at ECS Tuning | ||||
| 09 | Pružná podložka | 8,4X15-ZNS3 | X | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 10 | Pouzdro | 2 | 31421236243 | $1.33 | Shop at ECS Tuning | |||||
| 11 | Víčko | 4 | 31421232243 | $1.96 | Shop at ECS Tuning | |||||
| 12 | Pryžová průchodka | 2 | 31421236242 | $2.80 | Shop at ECS Tuning | |||||
| 13 | Přídavný spínač | 1 | 61311243454 | $46.35 | UKONČENO, +core | Shop at ECS Tuning | ||||
| 14 | Relé | GELB | 1 | 61311373585 | $23.75 | UKONČENO | Shop at ECS Tuning | |||
| 14 | Minirelé | 1 | 61311373588 | $11.38 | Shop at ECS Tuning | |||||
| 15 | Kabelová spojka | L=200MM/B=3,6MM | 1 | 61131367599 | $0.43 | Shop at ECS Tuning | ||||
| 15 | Kabelová spojka | L=292MM/B=4,8MM | 1 | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
| 16 | Kabelová sada přídavný světlomet | 1 | 09/1980 | 61121243704 | $36.36 | Shop at ECS Tuning | ||||
| 17 | Pouzdro | 1 | 09/1980 | 61131243693 | Shop at ECS Tuning | |||||
| 18 | Uchycení | 1 | 09/1980 | 61131243695 | Shop at ECS Tuning | |||||
| 19 | Pryžová průchodka | 1 | 09/1980 | 61131243744 | $2.80 | Shop at ECS Tuning | ||||
| 20 | Šestihranný šroub | M6X16-8.8-ZNS | 1 | 09/1980 | 07119913015 | $0.60 | Shop at ECS Tuning | |||
| 21 | Pružná podložka černá | B6-ZN | 1 | 09/1980 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 21 | Podložka | 5.3-140 HV-ZNS | 1 | 09/1980 | 07119936439 | $0.40 | Shop at ECS Tuning | |||
| 21 | Pružná podložka | B6-ZNS3 | 1 | 09/1980 | 07119904496 | $1.78 | UKONČENO | Shop at ECS Tuning | ||
| 22 | Maticový držák | M6 | 1 | 09/1980 | 61131243733 | $0.48 | Shop at ECS Tuning | |||
| 23 | Samořezný šroub s čočkovou hlavou | ST4,8X13 | 1 | 07119907786 | $0.11 | Shop at ECS Tuning | ||||
| 24 | Matice na plech | ST 4,8-7-ZNS3 | 1 | 09/1980 | 07129904226 | $0.09 | Shop at ECS Tuning | |||
| 25 | Samořezný šroub s čočkovou hlavou | ST4,2X13 | 1 | 09/1980 | 07119907946 | $0.20 | Shop at ECS Tuning | |||
| 26 | Pružná podložka | B5 | 1 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 27 | Lisovaná matice do otvoru | 1 | 09/1980 | 61131243610 | UKONČENO | Shop at ECS Tuning | ||||
| 29 | Dodatečná sada přídavný světlomet | 1 | 09/1980 | 63171243892 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
