Zadní svítilna for BMW R45-R65LS..78-85 R65LS (1983)

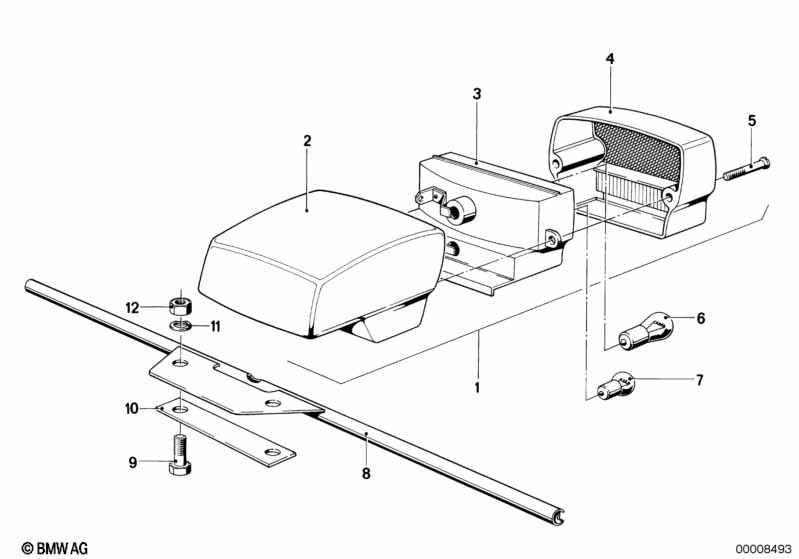

This Zadní svítilna technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65LS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1983.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Zadní svítilna | OLSA | 1 | 63211243756 | $245.22 | +core | Shop at ECS Tuning | |||
| 02 | Pouzdro | HELLA | 1 | 63211243686 | $72.90 | +core | Shop at ECS Tuning | |||
| 02 | Pouzdro | OLSA | 1 | 63211243759 | $63.52 | +core | Shop at ECS Tuning | |||
| 03 | Držák žárovky | HELLA | 1 | 63211243685 | $89.44 | +core | Shop at ECS Tuning | |||
| 03 | Držák žárovky | OLSA | 1 | 63211243760 | $67.65 | Shop at ECS Tuning | ||||
| 04 | Světelný kotouč | HELLA | 1 | 63211243684 | $79.16 | +core | Shop at ECS Tuning | |||
| 04 | Světelný kotouč | OLSA | 1 | 63211243758 | $59.74 | Shop at ECS Tuning | ||||
| 05 | Samořezný šroub s čočkovou hlavou | 2 | 63211243687 | $2.06 | UKONČENO | Shop at ECS Tuning | ||||
| 06 | Žárovka Longlife | P21W/12V/21W | 1 | 63217160790 | $2.38 | Shop at ECS Tuning | ||||
| 08 | Držák zadní | 362MM / SW | 1 | 09/1981 | 63231244352 | $60.54 | UKONČENO | Shop at ECS Tuning | ||
| 08 | Držák zadní | 1 | 09/1981 | 63231244373 | $60.54 | Shop at ECS Tuning | ||||
| 09 | Šestihranný šroub | M6X20-8.8-ZNS | 2 | 07119913016 | $0.60 | UKONČENO | Shop at ECS Tuning | |||
| 10 | Podložka | 1 | 63231352944 | $2.58 | Shop at ECS Tuning | |||||
| 11 | Pružná podložka černá | B6-ZN | 2 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 11 | Podložka | 5.3-140 HV-ZNS | 2 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 11 | Pružná podložka | B6-ZNS3 | 2 | 07119904496 | $1.78 | UKONČENO | Shop at ECS Tuning | |||
| 12 | Šestihranná matice | M6-8-ZNNIV SI | 2 | 07119905543 | $0.38 | Shop at ECS Tuning |
Notes
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
- Ukončeno = Díl se již nevyrábí.
