Jednotlivé díly světlomet for BMW 5 Series E12 518 (1981)

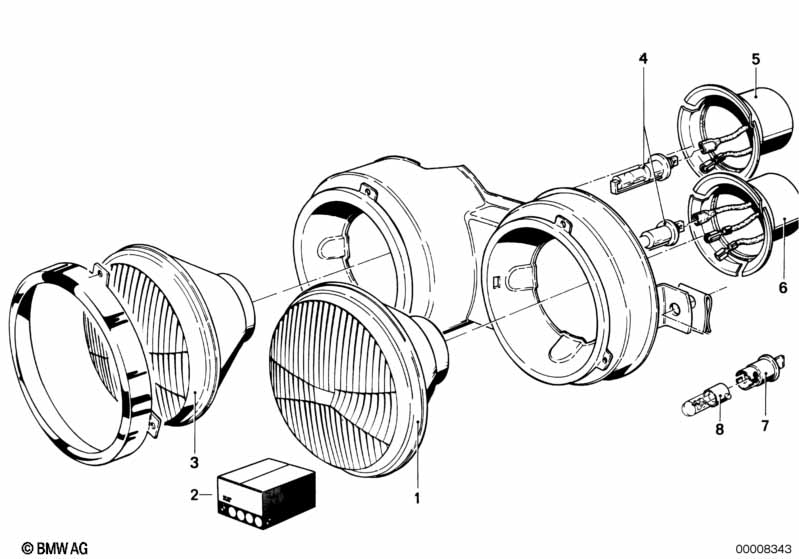

This Jednotlivé díly světlomet technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 518. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Vložka tlumených světlometů | HELLA | 2 | 63121356412 | $70.40 | Shop at ECS Tuning | ||||
| 01 | Vložka tlum. světlometů stupň. reflektor | 2 | 63121371329 | $54.00 | UKONČENO | Shop at ECS Tuning | ||||
| Pro vozidla s Provedení Francie |
L813A=Ano |
|||||||||
| 01 | Vložka tlumených světlometů žlutá | 2 | 63121356421 | $33.61 | Shop at ECS Tuning | |||||
| 01 | Vložka tlum. světl. stupň. reflek. žlutá | 2 | 63121371331 | Shop at ECS Tuning | ||||||
| 02 | Sada vložka tlum.světlom. stupň.reflekt. | 1 | 63129057331 | $77.56 | UKONČENO | Shop at ECS Tuning | ||||
| Pro vozidla s Provedení Francie |
L813A=Ano |
|||||||||
| 02 | Sada vložka tlum.světlom. stupň.reflekt. | 1 | 63129057887 | UKONČENO | Shop at ECS Tuning | |||||
| 03 | Vložka dálkového světla | HELLA | 2 | 63121356409 | $79.27 | Shop at ECS Tuning | ||||
| Pro vozidla s Provedení Francie |
L813A=Ano |
|||||||||
| 03 | Vložka dálkového světla žlutá | 2 | 63121356419 | $57.28 | Shop at ECS Tuning | |||||
| 04 | Žárovka | 12V 55W H1 | X | 63217160777 | $11.68 | Shop at ECS Tuning | ||||
| 05 | Odnímatelný kryt | HELLA | 2 | 63121372732 | $26.55 | UKONČENO | Shop at ECS Tuning | |||
| 06 | Odnímatelný kryt | HELLA | 2 | 63121373321 | $26.55 | Shop at ECS Tuning | ||||
| 07 | Objímka žárovky | 2 | 62148680130 | $3.25 | Shop at ECS Tuning | |||||
| 08 | Žárovka | 12V 4W | X | 07509063576 | $1.58 | Shop at ECS Tuning | ||||
Notes
- Ukončeno = Díl se již nevyrábí.
