Světlo motorového prostoru for BMW 2500-3.3Li 2800 (1970)

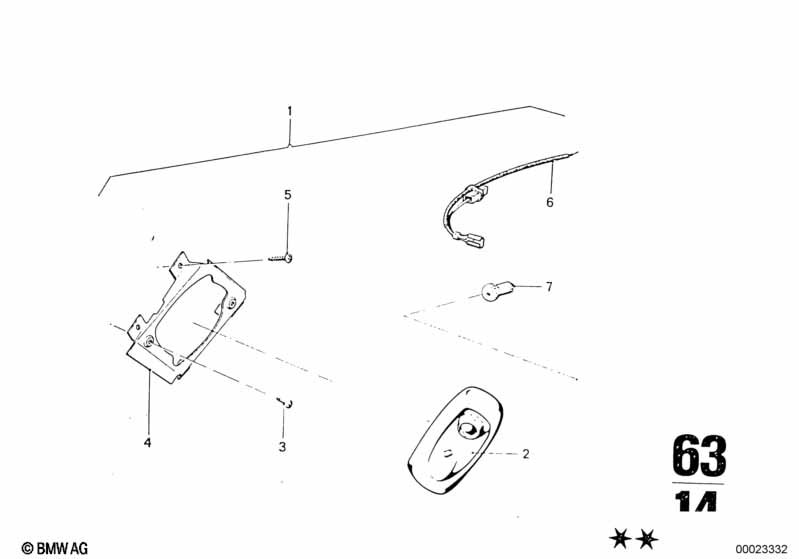

This Světlo motorového prostoru technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1970.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Světlo pro čtení | 1 | 08/1968 | 02/1977 | 63319557080 | UKONČENO | Shop at ECS Tuning | |||
| 01 | Světlo pro čtení | 1 | 08/1968 | 02/1977 | 63319557081 | UKONČENO | Shop at ECS Tuning | |||
| 02 | Světlo pro čtení | 1 | 63311352517 | $112.72 | UKONČENO | Shop at ECS Tuning | ||||
| 03 | Zápustný šroub na plech s čočkovou hl. | ST3,9X9,5 | 4 | 07119902454 | $0.18 | Shop at ECS Tuning | ||||
| 04 | Uchycení | 1 | 63311355985 | UKONČENO | Shop at ECS Tuning | |||||
| 04 | Uchycení | 1 | 63311355986 | UKONČENO | Shop at ECS Tuning | |||||
| 05 | Zápustný šroub na plech s čočkovou hl. | ST3,5X9,5 | 2 | 07119902524 | $0.82 | Shop at ECS Tuning | ||||
| 06 | Kabel | 1 | 63311354004 | UKONČENO | Shop at ECS Tuning | |||||
| 07 | Žárovka | 12V 10W | 1 | 07119905337 | $1.96 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
