Mlhový světlomet for BMW MINI R50 Cooper (2000)

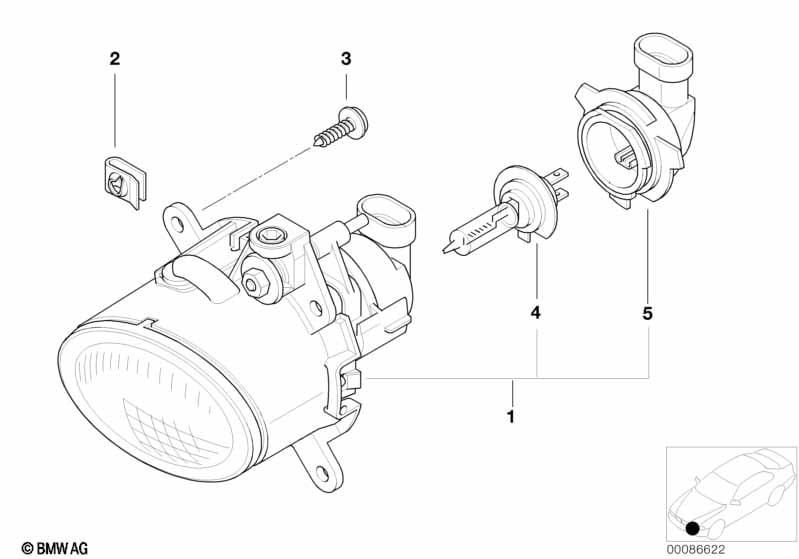

This Mlhový světlomet technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Mlhový světlomet levý | 1 | 06/2002 | 63176925049 | $75.27 | Shop at ECS Tuning | ||||
| pouze společně s | ||||||||||
| -- | Plochý pružný kontakt JPT ELA s kabelem | 0,5-1,0 MM² AG | 1 | 06/2002 | 61130070584 | Shop at ECS Tuning | ||||
| -- | Opravná sada kryt pouzdra | 2 POL. | 1 | 06/2002 | 61132360041 | Shop at ECS Tuning | ||||
| 01 | Mlhový světlomet pravý | 1 | 06/2002 | 63176925050 | $75.27 | Shop at ECS Tuning | ||||
| pouze společně s | ||||||||||
| -- | Plochý pružný kontakt JPT ELA s kabelem | 0,5-1,0 MM² AG | 2 | 06/2002 | 61130070584 | Shop at ECS Tuning | ||||
| -- | Opravná sada kryt pouzdra | 2 POL. | 1 | 06/2002 | 61132360041 | Shop at ECS Tuning | ||||
| 02 | Matice na plech | ST4,8-9-ZNS3 | 6 | 07129904150 | $0.25 | Shop at ECS Tuning | ||||
| 03 | Šroub na plech s podložkou | ST 4,8X19 | 6 | 07119904263 | $0.29 | Shop at ECS Tuning | ||||
| 04 | Žárovka | H7/55W | 2 | 63217160780 | $18.86 | Shop at ECS Tuning | ||||
| 04 | Žárovka Longlife | 12V 55W H7 | 2 | 63217160781 | $20.90 | Shop at ECS Tuning | ||||
| 05 | Držák žárovky | 2 | 06/2002 | 63128380206 | $11.87 | Shop at ECS Tuning | ||||
