Zadní svítilna for BMW 5 Series E39 520i (2003)

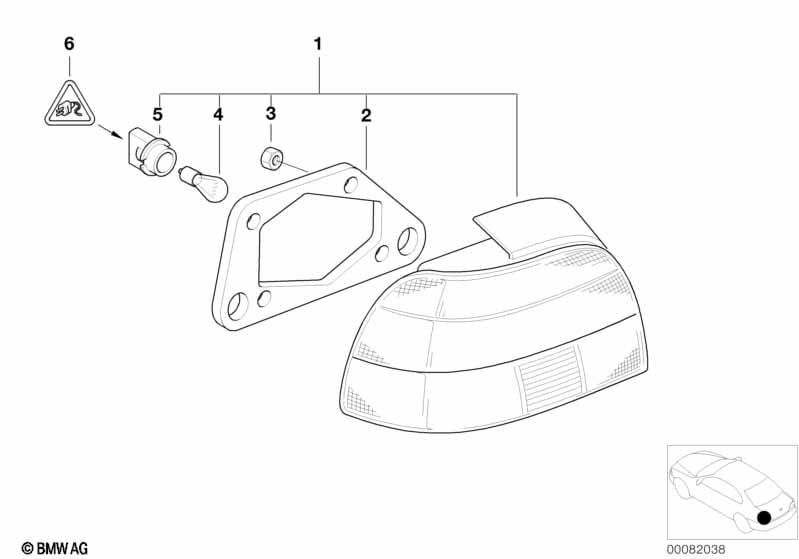

This Zadní svítilna technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Zadní svítilna levá | 1 | 09/2000 | 63216900209 | $279.48 | Shop at ECS Tuning | ||||
| 01 | Zadní svítilna pravá | 1 | 09/2000 | 63216900210 | $279.48 | Shop at ECS Tuning | ||||
| 01 | Zadní svítilna levá, blikač bílý | 1 | 09/2000 | 63216902527 | $302.48 | Shop at ECS Tuning | ||||
| 01 | Zadní svítilna pravá, blikač bílý | 1 | 09/2000 | 63216902528 | $302.48 | Shop at ECS Tuning | ||||
| 02 | Těsnění zadní svítilna levá | 1 | 09/2000 | 63216911695 | $9.96 | Shop at ECS Tuning | ||||
| 02 | Těsnění zadní svítilna pravá | 1 | 09/2000 | 63216911696 | $9.96 | Shop at ECS Tuning | ||||
| 03 | Šestihranná matice s podložkou | M5 | 8 | 09/2000 | 63259128043 | $0.72 | Shop at ECS Tuning | |||
| 04 | Žárovka | P21W/12V/21W | 4 | 09/2000 | 63217160789 | $1.96 | Shop at ECS Tuning | |||
| 04 | Žárovka Longlife | P21W/12V/21W | 4 | 09/2000 | 63217160790 | $2.38 | Shop at ECS Tuning | |||
| 04 | Žárovka, žlutá | PY21W/12V/21W | 2 | 09/2000 | 63217160791 | $5.58 | Shop at ECS Tuning | |||
| 05 | Objímka žárovky | 4 | 09/2000 | 63211379399 | $9.05 | Shop at ECS Tuning | ||||
| 05 | Objímka žárovky žlutá/stříbrná | 2 | 09/2000 | 63216903651 | $9.40 | Shop at ECS Tuning | ||||
| 06 | Pouzdro zásuvky | 6 POL. | 2 | 09/2000 | 61138369702 | $0.75 | Shop at ECS Tuning | |||
| pouze společně s | ||||||||||
| -- | Buchsenkontakt ELO-Power mit Kabel | 0,75-1,0 MM² SN | 12 | 09/2000 | 61130056965 | Shop at ECS Tuning | ||||
| 06 | Univerzální zdířk.skříň MPQ nekódovaná | 6 POL. | 2 | 09/2000 | 61136984758 | $3.12 | Shop at ECS Tuning | |||
| pouze společně s | ||||||||||
| -- | Zdířkový kontakt ELO- Power 2,8x 0,63 | 0,5-1,0 MM² | 6 | 09/2000 | 61138364832 | $0.35 | Shop at ECS Tuning | |||
| -- | Zdířkový kontakt ELO- Power 2,8x 0,63 | 1,5-2,5 MM² SN | 6 | 09/2000 | 61138364834 | $0.35 | Shop at ECS Tuning | |||
| -- | Zdířkový kontakt ELO- Power 2,8x 0,63 | 0,35-0,5 MM² SN | 6 | 09/2000 | 61138377162 | $0.35 | Shop at ECS Tuning | |||
