Zadní svítilna nárazník for BMW 6 Series E63 645Ci (2005)

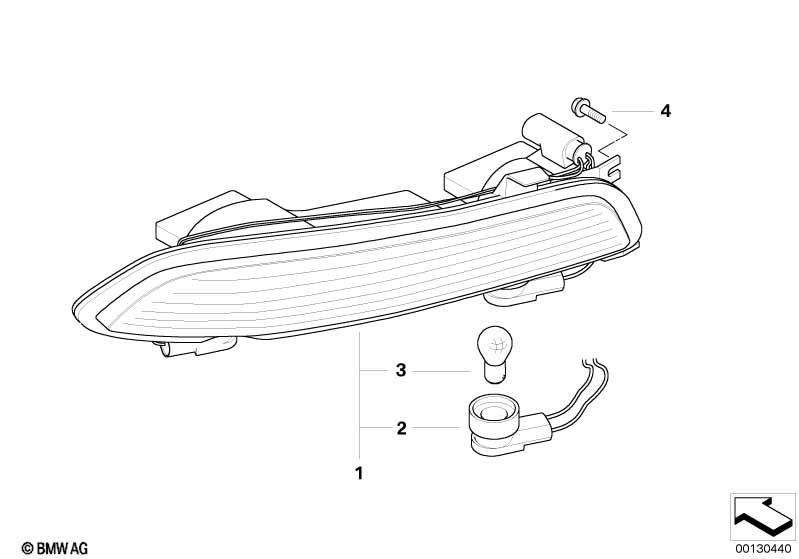

This Zadní svítilna nárazník technical drawing provides a detailed breakdown of the assembly for the 6 Series E63 645Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Zadní svítilna levá | 1 | 08/2007 | 63217165815 | $83.50 | Shop at ECS Tuning | ||||
| 01 | Zadní svítilna pravá | 1 | 08/2007 | 63217165816 | $83.50 | Shop at ECS Tuning | ||||
| 02 | Objímka žárovky zadní svítilna | 2 | 08/2007 | 63216942453 | $22.38 | Shop at ECS Tuning | ||||
| 03 | Žárovka Longlife | P21W/12V/21W | 4 | 08/2007 | 63217160790 | $2.38 | Shop at ECS Tuning | |||
| 04 | Šroub s čočkovou hlavou s nákružkem | M4X14 | 6 | 08/2007 | 46637659479 | $1.20 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E63 645Ci Zadní svítilna nárazník?
- This technical diagram illustrates the Zadní svítilna nárazník within the Osvětlovací souprava group for the 6 Series E63 645Ci produced during 2005. It provides a detailed exploded view of the components, identifying key parts such as the Zadní svítilna levá (Part #63217165815).
- Which models use the hardware listed in this Zadní svítilna nárazník?
- The hardware and components featured in the Zadní svítilna nárazník are specific to the 6 Series E63 645Ci produced during 2005. These technical specifications ensure that parts like the Zadní svítilna levá (63217165815) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Zadní svítilna nárazník assembly?
- Each item in the Zadní svítilna nárazník corresponds to the numbered list below the illustration. For the 6 Series E63 645Ci, you can identify the Zadní svítilna levá by locating its position on the schematic, which then links to the official BMW part number 63217165815 for the Osvětlovací souprava section.
